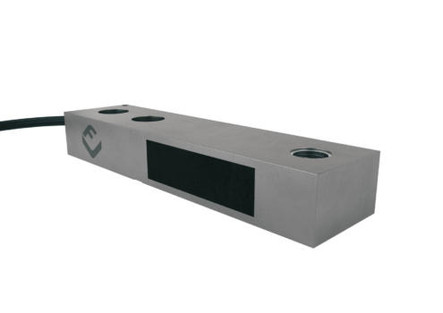

Flintec BK2-200kg-1/2-20UNF, 200 kg Stainless Steel Single Point Load Cell
Features
- 200 kg / 441 lb capacity rating
- Full scale output of 2 mV/V
- Stainless steel construction
- Environmentally sealed IP67
- Safe overload up to 200% capacity
- 10 feet of cable
Common Applications
- OEM
- Bench Scales
- Packaging and Grading Machines
- Filling Equipment
1 year limited manufacturer's warranty
- Manufacturer:
- Flintec
- Model:
- BK2-200kg-1/2-20UNF
- Approvals:
- cFM
- Capacity Rating:
- 200 kg / 441 lb
- Safe Overload:
- 200% capacity
- Safe Sideload:
- 100% capacity
- Full Scale Output:
- 2.0 mV/V
- Output Resistance:
- 1000 (± 2) ohm
- Input Resistance:
- 1100 (± 50) ohm
- Rated Excitation:
- 5-10 VDC (15 V maximum)
- Insulation Resistance:
- 5,000 megohms
- Construction / Finish:
- Stainless steel
- Seal Type:
- Environmentally sealed IP67
- Combined Error:
- 0.03% full scale
- Length:
- 5.06"
- Width:
- 1.25"
- Height:
- 0.62"
- Threading:
- 1/2-20UNF
- Cable Length:
- 10 ft
- Cable Color Code:
- Green = + Excitation, Black = - Excitation, White = + Signal, Red = - Signal, Yellow = Shield
