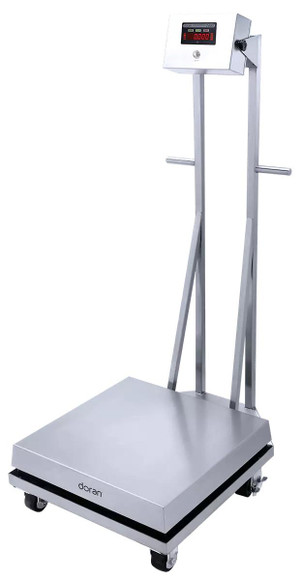

Doran 74500-PFS Portable Checkweighing Bench Scale, 24"x24" Platform, 500 lb x 0.1 lb, NTEP

$4,770.00
Part #:
74500-PFS
Availability:
Typically ships in 1-2 days

Doran 7400 SS checkweighing bench scales feature an impressive NEMA4X and IP69K rating for demanding washdown applications. A one-button mechanical design makes the 7400 SS easy to operate and prevents ruptures that can occur on touchpads. The PFS version includes a stainless steel cart with swivel and locking casters for portable operation.

Platform Features

  • Portable push cart with swivel and locking casters
  • Fully welded stainless steel push cart
  • Handles mounted at 41.5″ with an overall height of 59″
  • Six-point overload protection in bases 18" x 18" and larger provides 300% overload protection

Indicator 7400M Features

  • Simple one button operation
  • Under, Accept, and Over annunciators with backlights right above the main screen
  • NEMA4X and IP69K rated 304 stainless steel enclosure
  • Bright red, 0.8" tall 6 digit LED display
  • Includes swivel bracket for mounting

Applications

  • General Weighing
  • Accumulation

Documentation

Doran PFS Series Brochure Doran 7400M Brochure Doran 7400M Manual

2 Year Limited Manufacturer's Warranty
Capacity:
500 lb
Readability:
0.1 lb
Units:
lb, kg, oz, g, lb:oz
Base Dimension:
24" x 24"
NTEP:
Yes
Class:
III
Indicator NTEP CC:
99-129A1
Base NTEP CC:
13-110
Measurement Canada Approved:
Yes
Load Cell Excitation:
5 VDC
Wiring Style:
Hard Wire
Power:
Standard US power cord, 100 – 240VAC 50/60Hz
Optional Power:
Rechargeable battery (not included, must be ordered separately)
IP Rating:
IP69K
Buttons:
Tare, Gross/Net, Zero, Print, Units, Accum, Clear Prod Id, Set Point, Over, Under, Enter, Decimal Point, and Numeric Keypad 0-9
Display Type:
LED
Display Size:
0.8" tall
Standard Communication:
Two Bi-directional RS-232 ports standard (hard wire)
Scale Style:
Portable push cart with swivel and locking casters
Cart Construction:
Welded stainless steel frame
Cart Height:
59"
Handle Height:
41.5″
Brand:
Doran
Part Number:
74500-PFS
