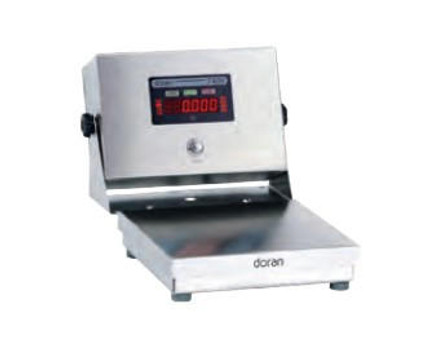

Doran 7400 SS checkweighing bench scales feature an impressive NEMA4X and IP69K rating for demanding washdown applications. A one-button mechanical design makes the 7400 SS easy to operate and prevents ruptures that can occur on touchpads. This 7400 SS model includes the 7400M indicator, scale base, and a swivel bracket attached to the frame.
Platform Features
- Indicator ships attached to frame of base with swivel bracket
- 304 stainless steel construction
- Quad-Spring base design provides 1000% overload protection in scale bases from 8" x 8" to 15" x 15"
Indicator 7400M Features
- Simple one button operation
- Under, Accept, and Over annunciators with backlights
- NEMA4X and IP69K rated 304 stainless steel enclosure
- Bright red, 0.8" tall 6 digit LED display
- Includes swivel bracket for mounting
Applications
- General Weighing
- Checkweighing
Documentation
2 Year Limited Manufacturer's Warranty
- Capacity:
- 25 lb
- Readability:
- 0.005 lb
- Units:
- lb, kg, oz, g, lb:oz
- Base Dimension:
- 8" x 8"
- NTEP:
- Yes
- Class:
- III
- Indicator NTEP CC:
- 99-129A1
- Base NTEP CC:
- 97-097A1
- Measurement Canada Approved:
- Yes
- Load Cell Excitation:
- 5 VDC
- Wiring Style:
- Hard Wire
- Power:
- Standard US power cord, 100 – 240VAC 50/60Hz
- IP Rating:
- IP69K
- Construction:
- 304 stainless steel
- External Buttons/Controls:
- Zero
- Internal Buttons/Controls:
- Units, Print, Over, Under
- Standard Communication:
- Two Bi-directional RS-232 ports standard (hard wire)
- Display Type:
- LED
- Display Size:
- 0.8" tall
- Digital I/O:
- Two remote switch inputs
- Scale Style:
- Rear mount bracket attached to frame
- Brand:
- Doran
- Part Number:
- 7425/88-ABR
