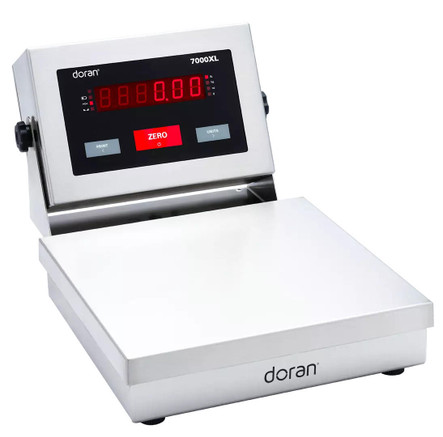

Doran 7000XL SS stainless steel bench scales perform well in demanding applications with long-lasting durability, exceptional washdown shielding for wet environments, and simplified operation. This scale systems features impressive overload protection, an IP69K rated indicator and puncture-proof keypad that works even with gloves on.
Platform Features
- Indicator ships attached to frame of base with a swivel bracket
- 304 stainless steel construction
- Quad-Spring base design provides 1000% overload protection in scale bases from 8" x 8" to 15" x 15"
- NTEP and Measurement Canada approved
Indicator 7000XLM Features
- IP69K rated 304 stainless steel enclosure
- Bright red, 0.8" tall 6 digit LED display
- Two Bi-directional RS-232 ports
- Two remote switch inputs from Digital I/Os
- Includes swivel bracket for mounting
- Simple three button operation
- NTEP and Measurement Canada approved
Applications
- General Weighing
Optional Accessories
- Rechargeable battery
- Remote switches
- Optional communications available include: Ethernet, WiFi-802.11b/g, USB, Bluetooth, or 4-20 mA
Documentation
2 Year Limited Manufacturer's Warranty
- Capacity:
- 100 lb
- Readability:
- 0.02 lb
- Units:
- lb, kg, oz, g, lb:oz
- Base Dimension:
- 12" x 12"
- NTEP:
- Yes
- Class:
- III
- Indicator NTEP CC:
- 99-129
- Base NTEP CC:
- 97-097
- Measurement Canada Approved:
- Yes
- Load Cell Excitation:
- 5 VDC
- Wiring Style:
- Hard Wire
- Power:
- Standard US power cord, 100 – 240VAC 50/60Hz
- Optional Power:
- Rechargeable battery (not included, must be ordered separately)
- IP Rating:
- IP69K
- Construction:
- 304 stainless steel
- Buttons:
- Zero, units, and print
- Display Type:
- LED
- Display Size:
- 0.8" tall
- Standard Communication:
- Two Bi-directional RS-232 ports standard (hard wire)
- Scale Style:
- Rear mount bracket attached to frame
- Part Number:
- 7100XL/12-ABR
- Brand:
- Doran
