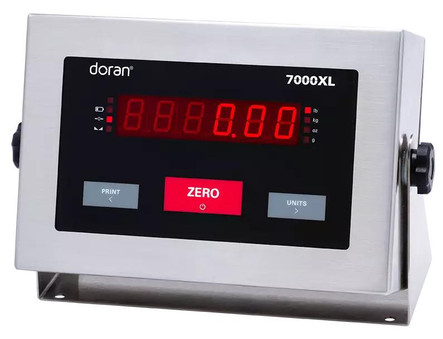

The Doran 7000XLM digital washdown indicator thrives in some of the most demanding work environments. It features an impressive IP69K rating for use in washdown and food manufacturing applications. The heavy-duty touch panel resists moisture and puncture damage, and is easy to operate while wearing gloves. The 7000XLM also includes a wall mount bracket, two hard wire style RS-232 ports, and features a simple 3 button operation.
Features
- Built in America
- IP69K rated 304 stainless steel enclosure
- Bright red, 0.8" tall 6 digit LED display
- Two Bi-directional RS-232 ports
- Two remote switch inputs from Digital I/Os
- Includes swivel bracket for mounting
- Simple three button operation
- NTEP and Measurement Canada approved
Applications
- General Weighing
Optional Accessories
- Rechargeable battery
- Remote switches
- Optional communications available include: Ethernet, WiFi-802.11b/g, USB, Bluetooth, or 4-20 mA
Documentation
2 Year Limited Manufacturers Warranty
- NTEP:
- Yes
- Class:
- III
- CC:
- 99-129
- Measurement Canada Approved:
- Yes, Cert. #AM-5347
- Resolution Range:
- 200d to 50,000 d
- Load Cell Capability:
- Up to Eight 350 Ohm load cells
- Units:
- lb, kg, oz, g, lb:oz
- Load Cell Excitation:
- 5 VDC
- Wiring Style:
- Hard Wire
- Power:
- Standard US power cord, 100 – 240VAC 50/60Hz
- Optional Power:
- Rechargeable battery (not included, must be ordered separately)
- IP Rating:
- IP69K
- Enclosure Construction:
- 304 stainless steel
- Buttons:
- Zero, units, and print
- Display Type:
- LED
- Display Size:
- 0.8" tall
- Product Dimensions:
- 10” W x 6.75” H x 3.5” D
- Standard Communication:
- Two Bi-directional RS-232 ports standard (hard wire)
- Optional Communication (Accessories Required):
- Ethernet, Wi-Fi – 802.11b/g, Bluetooth – 4.0, Class 3, SPP Protocol, USB – 2.0, CDC Protocol, 4-20 mA – Active current loop
- Part Number:
- 7000XLM
- Brand:
- Doran
