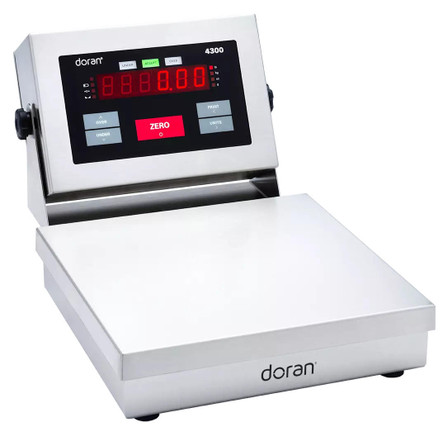

Doran 4325/12-ABR Checkweighing Bench Scale, 12"x12" Platform, 25 lb x 0.005 lb, NTEP

Doran 4300 SS checkweighing bench scales are designed for anything from the most basic bench scale applications, to even the most demanding weighing environments. With an impressive overload protection and an IP69K rated washdown indicator, expect this scale to perform exceptionally well over an extended period of time. Doran 4300 SS models also feature a simple 5 button puncture proof keypad that can be operated even with gloves on.

Platform Features

• Indicator ships attached to frame of base with a swivel bracket
• 304 stainless steel construction
• Quad-Spring base design provides 1000% overload protection in scale bases from 8" x 8" to 15" x 15"
• Six-point overload protection in bases 18" x 18" and larger provides 300% overload protection
• NTEP and Measurement Canada approved

Indicator 4300M Features

• Checkweigh with 3 or 5 zones
• Under, Accept, and Over annunciators with backlights right above the main screen
• IP69K rated 304 stainless steel enclosure
• Basic controls through a 5 button operation
• Bright red, 0.8" tall 6 digit LED display
• Includes swivel bracket for mounting
• Optimized puncture proof keypad
• Can be set up with password protection
• NTEP and Measurement Canada approved

Applications

• General Weighing
• Checkweighing

Optional Accessories

• Rechargeable battery
• Remote switches
• Optional audible alarms
• Optional communications available include: Ethernet, WiFi-802.11b/g, USB, Bluetooth, or 4-20 mA
• Add Doran Excelerator software, to collect data for transfer to a Microsoft Excel spreadsheet via a local RS232, Bluetooth or USB port, or sent across a wired or wireless Ethernet network

Documentation

Doran 4300M Brochure Doran 4300M Manual
