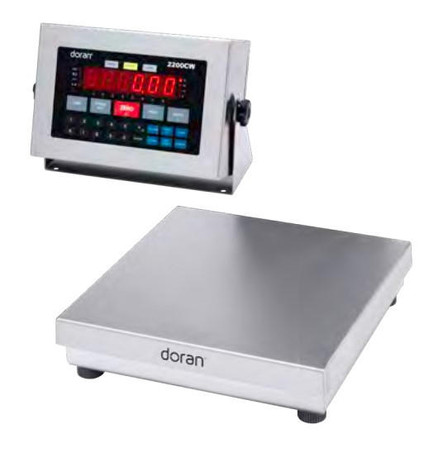

Doran 2200CW checkweighing bench scales perform well in demanding applications with long-lasting durability, exceptional washdown shielding for wet environments, and a simple yet expandable operation. This scale system features an impressive overload protection, an IP69K rated indicator and a puncture-proof keypad that works even with gloves on. Doran 2200CW bench scales also feature three annunciators with back lights that represent Under, Accept, and Over for checkweighing.
Platform Features
- Approximately 6 ft long cable between base and indicator
- 304 stainless steel construction
- Quad-Spring base design provides 1000% overload protection in scale bases from 8" x 8" to 15" x 15"
- Six-point overload protection in bases 18" x 18" and larger provides 300% overload protection
- NTEP and Measurement Canada approved
Indicator 2200CW Features
- Checkweigh with 3 or 5 zones
- Under, Accept, and Over annunciators with backlights right above the main screen
- IP69K rated 304 stainless steel enclosure
- Large product memory with 800 Product ID’s and 200 user ID's
- Bright red, 0.8" tall 6 digit LED display
- Includes swivel bracket for mounting
- Optimized puncture proof keypad with wide range of operational buttons
- Can be set up with password protection
- NTEP and Measurement Canada approved
Applications
- General Weighing
- Checkweighing
- Accumulation
Optional Accessories
- Rechargeable battery
- Remote switches
- Optional communications available include: Ethernet, WiFi-802.11b/g, USB, Bluetooth, or 4-20 mA
- Doran specific software (Doran ionSuite, QC Weigh and Performance ID software)
Documentation
2 Year Limited Manufacturer's Warranty
- Capacity:
- 25 lb
- Readability:
- 0.005 lb
- Units:
- lb, kg, oz, g, lb:oz
- Base Dimension:
- 12" x 12"
- Cable Length (between base and indicator):
- Approx. 6 ft
- NTEP:
- Yes
- Class:
- III
- Indicator NTEP CC:
- 06-101
- Base NTEP CC:
- 97-097A1
- Measurement Canada Approved:
- Yes
- Load Cell Excitation:
- 5 VDC
- Wiring Style:
- Hard Wire
- Power:
- Standard US power cord, 100 – 240VAC 50/60Hz
- Optional Power:
- Rechargeable battery (not included, must be ordered separately)
- IP Rating:
- IP69K
- Construction:
- 304 stainless steel
- Buttons:
- Tare, Gross/Net, Zero, Print, Units, Accum, Clear Prod Id, Set Point, Over, Under, Enter, Decimal Point, and Numeric Keypad 0-9
- Display Type:
- LED
- Display Size:
- 0.8" tall
- Standard Communication:
- Two Bi-directional RS-232 ports standard (hard wire)
- Memory:
- 800 Product ID’s, containing setpoint values, batch program, accumulator, counter values, tare, two data fields, setpoint and output configurations
- Digital I/O:
- Two remote switch inputs, Eight outputs – 4.7 or 12 VDC configurable up to 800mA
- Part Number:
- 2225CW/12
- Brand:
- Doran
