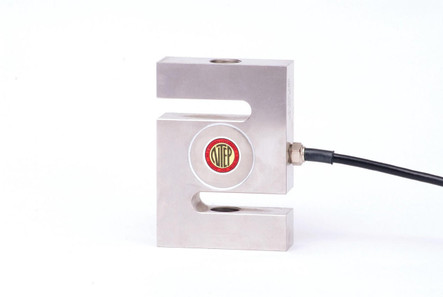

Coti Global Sensors CGSB-SS-1 5K lb S-Beam Load Cell
Features
- NTEP CC: 08-110
- NTEP 1:5,000 Class III, Single Cell
- NTEP 1:10,000 Class IIIL, Single Cell
- 5K lb capacity rating
- Stainless steel construction
- Threaded hole
- 3.00 mV/V output
- Load cell cable length 20 ft
- Safe overload up to 150% capacity
Interchange
- Revere Transducers 9363
- Artech 20210SS
- Rice Lake RL20000SS
Documentation
1 year limited manufacturer's warranty
- Capacity:
- 5K lb
- NTEP:
- Yes
- Class:
- III/IIIL
- Approvals:
- FM
- Safe Overload:
- 150% capacity
- Dimensions:
- 4.00 x 3.00 x 1.00 in
- Hole Threading:
- 3/4-16UNF
- Construction:
- Stainless steel
- Cable Color Code:
- Green = + Excitation, Black = - Excitation, White = + Signal, Red = - Signal
- Rated Excitation:
- 10V AC/DC (maximum of 20 V)
- Full Scale Output:
- 3.00 mV/V
- Input Resistance:
- 385 +/- 10 ohms
- Output Resistance:
- 350 +/- 3 ohms
- Insulation Resistance:
- 5000 megohms
- Compensated Temperature Range:
- -10�C to 40�C
- Seal Type:
- Environmentally Sealed
- IP Rating:
- IP67
- Nonlinearity:
- +/- 0.03 % full scale
- Hysteresis:
- +/- 0.02 % full scale
- Repeatability:
- +/- 0.01% full scale
- Creep (30) Minutes:
- +/- 0.02% full scale
- Zero Balance:
- +/- 1.00% full scale
- Temperature Effect on Zero:
- +/- 0.0027% of rated output /�C
- Temperature Effect on Output:
- +/- 0.0015% of rated output /�C
- Cable Length:
- 20 ft
- Manufacturer:
- Coti Global Sensors
- Model:
- CGSB-SS-1
