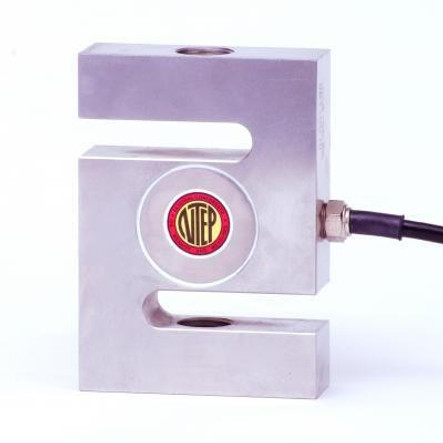

Coti Global Sensors CGSB 2Klb 2000 lb S-Beam Load Cell, NTEP
Coti Global Sensors CGSB s-beam load cells are commonly used in suspended weighing applications such as hoppers and tanks. The CGSB load cell has a threaded hole, 20 ft load cell cable, and is constructed of alloy steel. NTEP approved models are from 250 lb to 20,000 lb capacities.
CGSB model load cells can be used interchangeably with the following load cell models: Celtron STC, Sensortronics 60001, and Rice Lake RL20001
Features
- 2000 lb capacity rating
- NTEP approved
- Alloy steel construction
- Threaded hole
- 3 mV/V output
- Load cell cable length 20 ft
- Safe overload up to 150% capacity
1 year limited manufacturer's warranty
- Manufacturer:
- Coti Global Sensors
- Model:
- CGSB
- Part Number:
- CGSB 2Klb
- Certification:
- NTEP CC 08-109
- Approvals:
- FM
- Capacity:
- 2000 lb
- Safe Overload:
- 150% capacity
- Depth:
- 1"
- Width:
- 2.00"
- Height:
- 3"
- Hole Threading:
- 1/2-20UNF
- Construction:
- Alloy steel
- Cable Color Code:
- Green = + Excitation, Black = - Excitation, White = + Signal, Red = - Signal
- Rated Excitation:
- 10 VDC (maximum of 15 V)
- Full Scale Output:
- 3 mV/V
- Input Resistance:
- 385 +/- 10 ohms
- Output Resistance:
- 350 +/- 3 ohms
- Insulation Resistance:
- 2000 megohms
- Compensated Temperature Range:
- -10�C to 40�C
- Seal Type:
- Environmentally Sealed
- IP Rating:
- IP67
- Nonlinearity:
- 0.03 % full scale
- Hysteresis:
- 0.02 % full scale
- Repeatability:
- +/- 0.01% full scale
- Creep (30) Minutes:
- +/- 0.02% full scale
- Zero Balance:
- +/- 1.00% full scale
- Temperature Effect on Zero:
- +/- 0.0027% of rated output /�C
- Temperature Effect on Output:
- +/- 0.0015% of rated output /�C
- Cable Length:
- 20 ft
- Interchangeable Products:
- Celtron STC, Sensortronics 60001, Rice Lake RL20001
