Coti Global Sensors CGSB 200 lb S-Beam Load Cell

MSRP: $190.58
$172.00
(Save $18.58)
Part #:
CGSB 200 lb
Availability:
Typically ships in 1-2 days

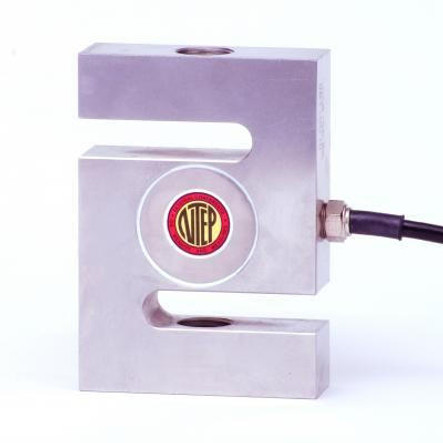

Coti Global Sensors CGSB 200 lb S-Beam Load Cell

Coti Global Sensors CGSB s-beam load cells are commonly used in suspended weighing applications such as hoppers and tanks.  The CGSB load cell has a threaded hole, 20 ft load cell cable, and is constructed of alloy steel.  NTEP approved models are from 250 lb to 20,000 lb capacities.

CGSB model load cells can be used interchangeably with the following load cell models: Celtron STC, Sensortronics 60001, and Rice Lake RL20001

Features

  • 200 lb capacity rating
  • Alloy steel construction
  • Threaded hole
  • 3 mV/V output
  • Load cell cable length 20 ft
  • Safe overload up to 150% capacity

CGSB Dimensional Drawing

1 year limited manufacturer's warranty
Manufacturer:
Coti Global Sensors
Model:
CGSB
Part Number:
CGSB 200 lb
Certification:
n/a
Approvals:
FM
Capacity:
200 lb
Safe Overload:
150% capacity
Depth:
0.75"
Width:
2.00"
Height:
2.50"
Hole Threading:
1/4-28 UNF
Construction:
Alloy steel
Cable Color Code:
Green = + Excitation, Black = - Excitation, White = + Signal, Red = - Signal
Rated Excitation:
10 VDC (maximum of 15 V)
Full Scale Output:
3 mV/V
Input Resistance:
385 +/- 10 ohms
Output Resistance:
350 +/- 3 ohms
Insulation Resistance:
2000 megohms
Compensated Temperature Range:
-10�C to 40�C
Seal Type:
Environmentally Sealed
IP Rating:
IP67
Nonlinearity:
0.03 % full scale
Hysteresis:
0.02 % full scale
Repeatability:
+/- 0.01% full scale
Creep (30) Minutes:
+/- 0.02% full scale
Zero Balance:
+/- 1.00% full scale
Temperature Effect on Zero:
+/- 0.0027% of rated output /�C
Temperature Effect on Output:
+/- 0.0015% of rated output /�C
Cable Length:
20 ft
Interchangeable Products:
Celtron STC, Sensortronics 60001, Rice Lake RL20001
