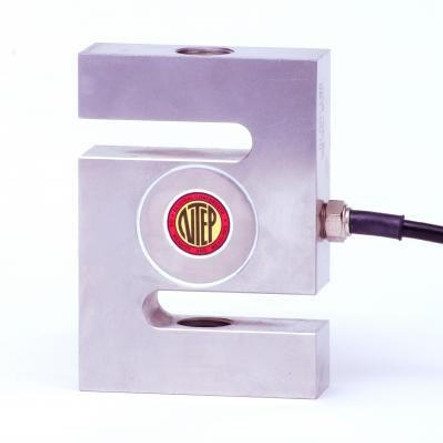

Coti Global Sensors CGSB-1 200 lb S-Beam Load Cell
Coti Global Sensors CGSB-1 s-beam load cells are commonly used in suspended weighing applications such as hoppers and tanks. The CGSB-1 load cell has a threaded hole, 20 ft load cell cable, and is constructed of alloy steel. NTEP approved models are from 250 lb to 10,000 lb capacities.
Features
- 200 lb capacity rating
- Alloy steel construction
- Threaded hole
- 3 mV/V output
- Load cell cable length 20 ft
- Safe overload up to 150% capacity
Interchange
- Artech 20210
- Rice Lake RL20000
- Revere 363
Documentation
1 year limited manufacturer's warranty
- Manufacturer:
- Coti Global Sensors
- Model:
- CGSB-1
- Part Number:
- CGSB-1 200 lb
- Approvals:
- FM
- Capacity:
- 200 lb
- Safe Overload:
- 150% capacity
- Depth:
- 0.75"
- Width:
- 2.00"
- Height:
- 2.5"
- Hole Threading:
- 1/4-28UNF
- Construction:
- Alloy steel
- Cable Color Code:
- Green = + Excitation, Black = - Excitation, White = + Signal, Red = - Signal
- Rated Excitation:
- 10 VDC (maximum of 15 V)
- Full Scale Output:
- 3 mV/V
- Input Resistance:
- 385 +/- 10 ohms
- Output Resistance:
- 350 +/- 3 ohms
- Insulation Resistance:
- 2000 megohms
- Compensated Temperature Range:
- -10�C to 40�C
- Seal Type:
- Environmentally Sealed
- IP Rating:
- IP67
- Nonlinearity:
- 0.03 % full scale
- Hysteresis:
- 0.02 % full scale
- Repeatability:
- +/- 0.01% full scale
- Creep (30) Minutes:
- +/- 0.02% full scale
- Zero Balance:
- +/- 1.00% full scale
- Temperature Effect on Zero:
- +/- 0.0027% of rated output /�C
- Temperature Effect on Output:
- +/- 0.0015% of rated output /�C
- Cable Length:
- 20 ft
- Interchangeable Products:
- Artech 20210, Rice Lake RL20000, Revere 363
