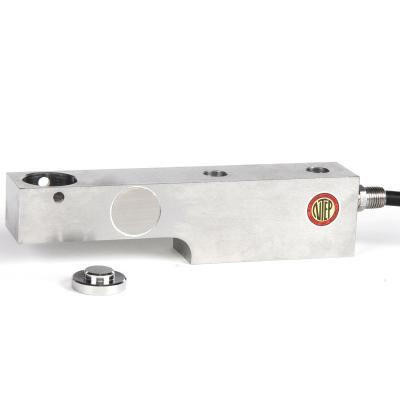

Coti Global Sensors CG-SB250 10 K Stainless Steel Single Ended Beam Load Cell, NTEP
Features
- NTEP Class III Multiple Cell
- NTEP CC 08-109
- New purchases include Insert and Rocket Washer
- 10 K capacity rating
- Stainless steel construction
- Threaded hole
- IP 67 rating
- 2 mV/V output
- Load cell cable length 30 ft
- Safe overload up to 150% capacity
Interchange
- Cardinal SB2500S
- Cardinal SB5000S
- Cardinal SB10000S
- Cardinal SB20000S
- Rice Lake Weighing Systems RLSB250
1 year limited manufacturer's warranty
- Approvals:
- FM
- NTEP:
- Yes
- Class:
- III
- Capacity:
- 10 K
- Safe Overload:
- 150% capacity
- Length:
- 9.00"
- Width:
- 2.00"
- Height:
- 2.46"
- Hole Threading:
- 3/4-16UNF
- Construction:
- Stainless Steel
- Cable Color Code:
- Green = + Excitation, Black = - Excitation, White = + Signal, Red = - Signal
- Rated Excitation:
- 10V AC/DC (maximum of 20 V)
- Full Scale Output:
- 2 mV/V
- Input Resistance:
- 385 +/- 10 ohms
- Output Resistance:
- 350 +/- 3 ohms
- Insulation Resistance:
- 5000 megohms
- Compensated Temperature Range:
- -10�C to 40�C
- Operating Temperature Range:
- -20�C to 60�C
- Seal Type:
- Environmentally Sealed
- IP Rating:
- IP67
- Nonlinearity:
- +/- 0.03 % full scale
- Hysteresis:
- +/- 0.02 % full scale
- Repeatability:
- +/- 0.01% full scale
- Creep (30) Minutes:
- +/- 0.02% full scale
- Zero Balance:
- +/- 1.00% full scale
- Temperature Effect on Zero:
- +/- 0.0027% of rated output /�C
- Temperature Effect on Output:
- +/- 0.0015% of applied load /�C
- Cable Length:
- 30 ft
- Part Number:
- CG-SB250 10 K
- Manufacturer:
- Coti Global Sensors
- Model:
- CG-SB250
