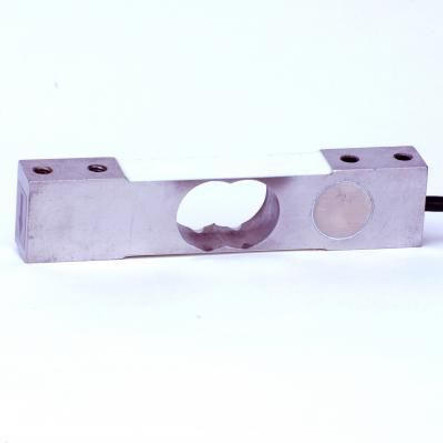

Coti Global Sensors CG-PWS 150 kg Stainless Steel Single Point Load Cell
Coti Global Sensors CG-PWS single point load cells are commonly used in bench scales and other medium capacity weighing applications. The CG-PWS load cell has a threaded hole, 10 ft load cell cable, and is constructed of stainless steel.
CG-PWS model load cells can be used interchangeably with the following load cell models:
- Rice Lake Weighting Systems RL1380
- HBM PWS
Features
- 150 kg capacity rating
- Stainless Steel construction
- Threaded hole
- IP 67 rating
- 2 mV/V output
- Load cell cable length 10 ft
- Safe overload up to 150% capacity
1 year limited manufacturer's warranty
- Approvals:
- FM
- Capacity:
- 150 kg
- Safe Overload:
- 150% capacity
- Length:
- 5.50"
- Width:
- 1.21"
- Height:
- 1.19"
- Hole Threading:
- 3/8-16UNCx0.75dp
- Construction:
- Stainless Steel
- Cable Color Code:
- Green = + Excitation, Black = - Excitation, White = + Signal, Red = - Signal
- Rated Excitation:
- 10V AC/DC (maximum of 20 V)
- Full Scale Output:
- 2 mV/V
- Input Resistance:
- 385 +/- 10 ohms
- Output Resistance:
- 350 +/- 3 ohms
- Insulation Resistance:
- 5000 megohms
- Compensated Temperature Range:
- -10�C to 40�C
- Operating Temperature Range:
- -20�C to 60�C
- Seal Type:
- Environmentally Sealed
- IP Rating:
- IP67
- Nonlinearity:
- +/- 0.03 % full scale
- Hysteresis:
- +/- 0.02 % full scale
- Repeatability:
- +/- 0.02% full scale
- Creep (30) Minutes:
- +/- 0.03% full scale
- Zero Balance:
- +/- 1.00% full scale
- Temperature Effect on Zero:
- +/- 0.002% of rated output /�C
- Temperature Effect on Output:
- +/- 0.001% of applied load /�C
- Cable Length:
- 10 ft
- Interchangeable Products:
- Rice Lake Weighing Systems RL1380, HBM PWS
- Part Number:
- CG-PWS 150 kg
- Manufacturer:
- Coti Global Sensors
- Model:
- CG-PWS
