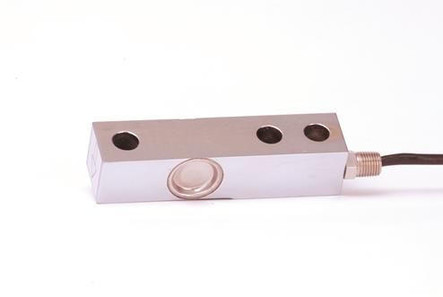

Coti Global Sensors CG-BLC-T 1K Stainless Steel Single Ended Beam Load Cell

MSRP: $346.50
$312.00
(Save $34.50)
Part #:
CG-BLC-T 1K
Availability:
Typically ships in 1-2 days

Coti Global Sensors CG-BLC-T 1K Stainless Steel Single Ended Beam Load Cell

Features

  • 1K capacity rating
  • Stainless steel construction
  • Threaded Hole
  • IP 67 rating
  • 3 mV/V output
  • Load cell cable length 20 ft
  • Safe overload up to 150% capacity

Interchange

  • Rice Lake Weighing Systems RLBLC
  • HBM BLC
  • Toledo 08159-020

Dimensional Drawing

1 year limited manufacturer's warranty
Approvals:
FM
Capacity:
1K
Safe Overload:
150% capacity
Length:
5.12"
Width:
1.21"
Height:
1.19"
Hole Threading:
1/2-20 UNF
Construction:
Stainless Steel
Cable Color Code:
Green = + Excitation, Black = - Excitation, White = + Signal, Red = - Signal
Rated Excitation:
10V AC/DC (maximum of 20 V)
Full Scale Output:
3 mV/V
Input Resistance:
1080 +/- 10 ohms
Output Resistance:
1000 +/- 5 ohms
Insulation Resistance:
5000 megohms
Compensated Temperature Range:
-10�C to 40�C
Operating Temperature Range:
-20�C to 60�C
Seal Type:
Welded Seal
IP Rating:
IP67
Nonlinearity:
+/- 0.03% full scale
Hysteresis:
+/- 0.03% full scale
Repeatability:
+/- 0.01% full scale
Creep (30) Minutes:
+/- 0.02% full scale
Zero Balance:
+/- 1.00% full scale
Temperature Effect on Zero:
+/- 0.0027% of rated output /�C
Temperature Effect on Output:
+/- 0.0015% of applied load /�C
Cable Length:
20 ft
Part Number:
CG-BLC-T 1K
Manufacturer:
Coti Global Sensors
Model:
CG-BLC-T
