Coti Global Sensors CG-50 635 kg Single Point Load Cell
Coti Global Sensors CG-50 single point load cells are commonly used in bench scales and other medium capacity weighing applications. The CG-50 load cell has a threaded hole, 10 ft load cell cable, and is constructed of aluminum.
Features
- 635 kg capacity rating
- Aluminum construction
- Threaded hole
- IP 67 rating
- 2 mV/V output
- Load cell cable length 10 ft
- Safe overload up to 150% capacity
Interchange
- Rice Lake Weighing Systems RL1250
- Rice Lake Weighing Systems RLPWM12
- Tedea-Huntleigh 1250
- Revere 652
- Celtron LOC
- HBM PW12
- Artech 60410
- CAS BCM
- Transcell FAY

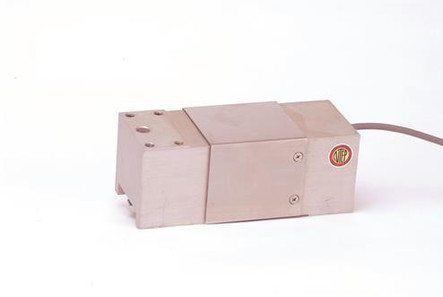

Note: This cell is not NTEP approved. Image is representative of 500 kg cells and below.
1 year limited manufacturer's warranty
- Approvals:
- FM
- Capacity:
- 635 kg
- Safe Overload:
- 150% capacity
- Length:
- 7.52"
- Width:
- 2.95"
- Height:
- 2.95"
- Hole Threading:
- 1/2-20UNFx0.50dp, 5/16-18UNCx0.62dp
- Construction:
- Aluminum
- Cable Color Code:
- Green = + Excitation, Black = - Excitation, White = + Signal, Red = - Signal
- Rated Excitation:
- 10V AC/DC (maximum of 20 V)
- Full Scale Output:
- 2 mV/V
- Input Resistance:
- 410 +/- 10 ohms
- Output Resistance:
- 350 +/- 3 ohms
- Insulation Resistance:
- 5000 megohms
- Compensated Temperature Range:
- 0�C to 30�C
- Operating Temperature Range:
- -20�C to 60�C
- Seal Type:
- Environmentally Sealed, Potted
- IP Rating:
- IP67
- Nonlinearity:
- +/- 0.02 % full scale
- Hysteresis:
- +/- 0.02 % full scale
- Repeatability:
- +/- 0.02% full scale
- Creep (30) Minutes:
- +/- 0.03% full scale
- Zero Balance:
- +/- 1.00% full scale
- Temperature Effect on Zero:
- +/- 0.002% of rated output /�C
- Temperature Effect on Output:
- +/- 0.001% of applied load /�C
- Cable Length:
- 10 ft
- Part Number:
- CG-50 635 kg
- Manufacturer:
- Coti Global Sensors
- Model:
- CG-50
