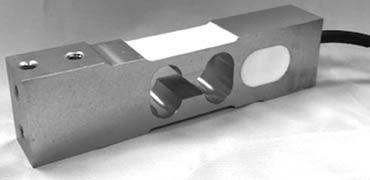

Coti Global Sensors CG-42-SS 100 kg Single Point Load Cell
Features
- 100 kg capacity rating
- Stainless steel construction
- 2.00 mV/V output
- Load cell cable length 10 ft
- Safe overload up to 150% capacity
Interchange
- Rice Lake Weighing Systems RLPWM15
- Tedea 1142
- HBM PW15
Documentation
1 year limited manufacturer's warranty
- Capacity:
- 100 kg
- Safe Overload:
- 150% capacity
- Dimensions:
- 5.91 x 0.992 x 1.5 in
- Hole Thread:
- 1/4-20UNCx0.5
- Construction:
- Stainless steel
- Cable Color Code:
- Green = + Excitation, Black = - Excitation, Red = + Signal, White = - Signal
- Rated Excitation:
- 10V AC/DC (maximum of 20 V)
- Full Scale Output:
- 2.00 mV/V
- Input Resistance:
- 385 +/- 10 ohms
- Output Resistance:
- 350 +/- 3 ohms
- Insulation Resistance:
- 5000 megohms
- Compensated Temperature Range:
- -10�C to 40�C
- Seal Type:
- Environmentally Sealed
- IP Rating:
- IP67
- Nonlinearity:
- +/- 0.02 % full scale
- Hysteresis:
- +/- 0.02 % full scale
- Repeatability:
- +/- 0.02% full scale
- Creep (30) Minutes:
- +/- 0.03% full scale
- Zero Balance:
- +/- 1.00% full scale
- Temperature Effect on Zero:
- +/- 0.002% of rated output /�C
- Temperature Effect on Output:
- +/- 0.001% of rated output /�C
- Cable Length:
- 10 ft
- Manufacturer:
- Coti Global Sensors
- Model:
- CG-42-SS
