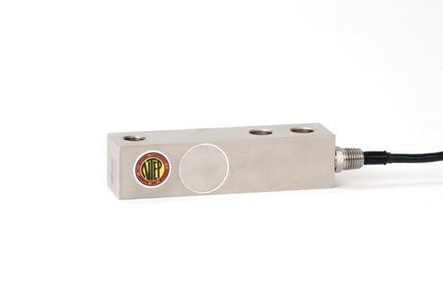

Coti Global Sensors CG-23-SS 10K 10,000 lb Single Ended Beam Load Cell, NTEP
Coti Global Sensors CG-23-SS single ended beam load cells are commonly used in platform scales and other medium capacity weighing applications. The CG-23-SS load cell has a threaded hole, 20 ft load cell cable, and is constructed of stainless steel. NTEP approved models are from 250 lb to 20,000 lb capacities.
CG-23-SS model load cells can be used interchangeably with the following load cell models: Zemic B8D, Rice Lake RL35023S, Celtron SQB SS, Sensortronics 65023SS, Artech SS30310, Revere 9123, Rice Lake RL39123, HBM B35, Transcell SBS
Features
- 10,000 lb capacity rating
- Stainless steel construction
- Threaded hole
- IP 67 rating
- 3 mV/V output
- Load cell cable length 20 ft
- NTEP Approved
- Safe overload up to 150% capacity
1 year limited manufacturer's warranty
- Manufacturer:
- Coti Global Sensors
- Model:
- CG-23-SS
- Part Number:
- CG-23-SS 10K
- NTEP:
- Class III 1:5,000
- Approvals:
- cFM, CE
- Capacity:
- 10,000 lb
- Safe Overload:
- 150% capacity
- Length:
- 6.75"
- Width:
- 1.50"
- Height:
- 1.50"
- Hole Threading:
- 3/4-16 UNF
- Construction:
- Stainless steel
- Cable Color Code:
- Green = + Excitation, Black = - Excitation, White = + Signal, Red = - Signal
- Rated Excitation:
- 10 VDC (maximum of 20 V)
- Full Scale Output:
- 3 mV/V
- Input Resistance:
- 385 +/- 10 ohms
- Output Resistance:
- 350 +/- 3 ohms
- Insulation Resistance:
- 5000 megohms
- Compensated Temperature Range:
- -10�C to 40�C
- Operating Temperature Range:
- -20�C to 60�C
- Seal Type:
- Environmentally Sealed
- IP Rating:
- IP67
- Nonlinearity:
- 0.03 % full scale
- Hysteresis:
- 0.02 % full scale
- Repeatability:
- +/- 0.01% full scale
- Creep (30) Minutes:
- +/- 0.02% full scale
- Zero Balance:
- +/- 1.00% full scale
- Temperature Effect on Zero:
- +/- 0.0027% of rated output /�C
- Temperature Effect on Output:
- +/- 0.0015% of rated output /�C
- Cable Length:
- 20 ft
- Interchangeable Products:
- Zemic B8D, Rice Lake RL35023S, Celtron SQB SS, Sensortronics 65023SS, Artech SS30310, Revere 9123, Rice Lake RL39123, HBM B35, Transcell SBS
