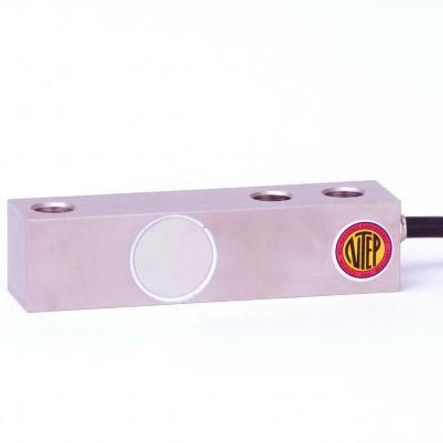

Coti Global Sensors CG-23 1.5K 1500 lb Single Ended Beam Load Cell, NTEP
Coti Global Sensors CG-23 single ended beam load cells are commonly used in platform scales and other medium capacity weighing applications. The CG-23 load cell has a threaded hole, 20 ft load cell cable, and is constructed of alloy steel. NTEP approved models are from 250 lb to 20,000 lb capacities. The 100 lb capacity model is non-NTEP.
CG-23 model load cells can be used interchangeably with the following load cell models: Totalcomp TSB, Zemic H8C, Rice Lake RL30000, Celtron SQB, Sensortronics 65023, Artech 30310, Tedea 3411, Revere 5123, Rice Lake RL35023, HBM A35, Transcell SBS
Features
- 1500 lb capacity rating
- Alloy steel construction
- Threaded hole
- IP 67 rating
- 3 mV/V output
- Load cell cable length 20 ft
- NTEP Approved
- Safe overload up to 150% capacity
1 year limited manufacturer's warranty
- Manufacturer:
- Coti Global Sensors
- Model:
- CG-23
- Part Number:
- CG-23 1.5K
- NTEP:
- Class III 1:5,000
- Approvals:
- cFM, CE
- Capacity:
- 1500 lb
- Safe Overload:
- 150% capacity
- Length:
- 5.12"
- Width:
- 1.25"
- Height:
- 1.25"
- Hole Threading:
- 1/2-20 UNF
- Construction:
- Alloy steel
- Cable Color Code:
- Green = + Excitation, Black = - Excitation, White = + Signal, Red = - Signal
- Rated Excitation:
- 10 VDC (maximum of 20 V)
- Full Scale Output:
- 3 mV/V
- Input Resistance:
- 385 +/- 10 ohms
- Output Resistance:
- 350 +/- 3 ohms
- Insulation Resistance:
- 5000 megohms
- Compensated Temperature Range:
- -10�C to 40�C
- Operating Temperature Range:
- -20�C to 60�C
- Seal Type:
- Environmentally Sealed
- IP Rating:
- IP67
- Nonlinearity:
- 0.03 % full scale
- Hysteresis:
- 0.02 % full scale
- Repeatability:
- +/- 0.01% full scale
- Creep (30) Minutes:
- +/- 0.02% full scale
- Zero Balance:
- +/- 1.00% full scale
- Temperature Effect on Zero:
- +/- 0.0027% of rated output /�C
- Temperature Effect on Output:
- +/- 0.0015% of rated output /�C
- Cable Length:
- 20 ft
- Interchangeable Products:
- Totalcomp TSB, Zemic H8C, Rice Lake RL30000, Celtron SQB, Sensortronics 65023, Artech 30310, Tedea 3411, Revere 5123, Rice Lake RL35023, HBM A35, Transcell SBS
