Coti Global Sensors CG-23-1-2K 2000 lb Single Ended Beam Load Cell, NTEP

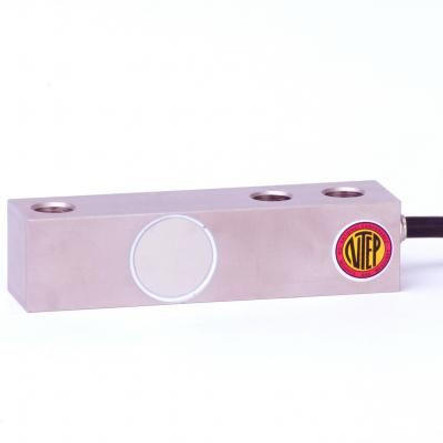

Coti Global Sensors CG-23-1 single ended beam load cells are commonly used in platform scales and other medium capacity weighing applications. The CG-23-1 load cell has a through hole design, 20 ft load cell cable, and is constructed of alloy steel. NTEP approved models are from 250 lb to 20,000 lb capacities. The 100 lb capacity model is non-NTEP.
CG-23-1 model load cells can be used interchangeably with the following load cell models: RL30002, Artech 30210, Tedea 3410
Features
- 2000 lb capacity rating
- Alloy steel construction
- Through hole
- IP 67 rating
- 3 mV/V output
- Load cell cable length 20 ft
- NTEP Approved
- Safe overload up to 150% capacity
Interchange Options
- Artech 30210
- Rice Lake RL30002
- Tedea 3410
Documentation
CG-23-1 NTEP Approval CG-23-1 FM Approval CG-23-1 Dimensional Drawing
1 year limited manufacturer's warranty
- Manufacturer:
- Coti Global Sensors
- Model:
- CG-23-1
- Part Number:
- CG-23-1-2K
- NTEP:
- Yes
- Other Approvals:
- cFM, CE
- Capacity:
- 2000 lb
- Safe Overload:
- 150% capacity
- Length:
- 5.12"
- Width:
- 1.25"
- Height:
- 1.25"
- Through Hole:
- 0.53"
- Construction / Finish:
- Alloy steel
- Cable Color Code:
- Green = + Excitation, Black = - Excitation, White = + Signal, Red = - Signal
- Rated Excitation:
- 10 VDC (maximum of 20 V)
- Full Scale Output:
- 3.0 mV/V
- Input Resistance:
- 385 +/- 10 ohms
- Output Resistance:
- 350 +/- 3 ohms
- Insulation Resistance:
- 5000 megohms
- Compensated Temperature Range:
- -10�C to 40�C
- Operating Temperature Range:
- -20�C to 60�C
- IP Rating:
- IP67
- Seal Type:
- Environmentally Sealed
- Nonlinearity:
- 0.03 % full scale
- Hysteresis:
- 0.02 % full scale
- Repeatability:
- +/- 0.01% full scale
- Creep (30) Minutes:
- +/- 0.02% full scale
- Zero Balance:
- +/- 1.00% full scale
- Temperature Effect on Zero:
- +/- 0.0027% of rated output /�C
- Temperature Effect on Output:
- +/- 0.0015% of rated output /�C
- Cable Length:
- 20 ft
- Interchangeable Products:
- RL30002, Artech 30210, Tedea 3410
