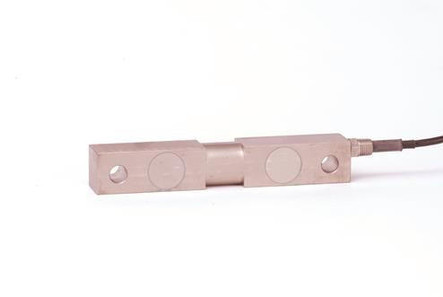

Coti Global Sensors CG-16 10K Alloy Steel Double Ended Beam Load Cell
Features
- 10K capacity rating
- Alloy steel construction
- IP 67 rating
- 3 mV/V output
- Load cell cable length 50 ft
- Safe overload up to 150% capacity
Interchange
- Rice Lake Weighing Systems RL75016
- Sensortronics 65016
- Revere 5203
- Celtron DSR
- Artech 70510
- Totalcomp GDE16
- Totalcomp TDE16
- Transcell DBS
1 year limited manufacturer's warranty
- Approvals:
- FM
- Capacity:
- 10K
- Safe Overload:
- 150% capacity
- Length:
- 8.75"
- Width:
- 1.44"
- Height:
- 1.94"
- Hole Threading:
- 1/4-18 NPT
- Construction:
- Alloy Steel
- Cable Color Code:
- Green = + Excitation, Black = - Excitation, White = + Signal, Red = - Signal
- Rated Excitation:
- 10V AC/DC (maximum of 20 V)
- Full Scale Output:
- 3 mV/V
- Input Resistance:
- 700 +/- 10 ohms
- Output Resistance:
- 700 +/- 5 ohms
- Insulation Resistance:
- 5000 megohms
- Compensated Temperature Range:
- -10�C to 40�C
- Operating Temperature Range:
- -20�C to 60�C
- Seal Type:
- Environmentally Sealed
- IP Rating:
- IP67
- Nonlinearity:
- +/- 0.03% full scale
- Hysteresis:
- +/- 0.02% full scale
- Repeatability:
- +/- 0.01% full scale
- Creep (30) Minutes:
- +/- 0.02% full scale
- Zero Balance:
- +/- 1.00% full scale
- Temperature Effect on Zero:
- +/- 0.0027% of rated output /�C
- Temperature Effect on Output:
- +/- 0.0015% of applied load /�C
- Cable Length:
- 50 ft
- Part Number:
- CG-16 10K
- Manufacturer:
- Coti Global Sensors
- Model:
- CG-16
