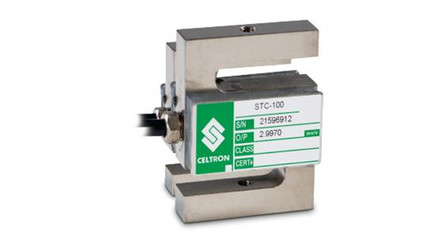

Celtron STC-200 lb S-Beam Load Cell

MSRP: $210.00
$199.50
(Save $10.50)
Part #:
35787
Availability:
Typically ships in 1-2 days

Celtron STC-200 lb S-Beam Load Cell

Features

  • 200 lb / 90.7 kg capacity rating
  • Alloy steel construction, nickel plated
  • IP 67 rating
  • 3 mV/V output
  • Load cell cable length 20 ft
  • Safe overload up to 150% capacity

Common Applications

  • OEM
  • Tank Scales
  • Crane Scales

Interchange

  • RL20000
1 year limited manufacturer's warranty
Manufacturer:
Celtron
Model:
STC-200 lb
Approvals:
cFM, CE
Capacity Rating:
200 lb / 90.7 kg
Safe Overload:
150% capacity
Height:
2.5"
Length:
2"
Width:
0.5"
Hole Threading:
1/4-28UNF-2B
Construction / Finish:
High-alloy steel, nickel plated
Cable Color Code:
Red = + Excitation, Black = - Excitation, Green = + Signal, White = - Signal, Bare = Shield
Rated Excitation:
5-10 VDC (maximum of 15 V)
Full Scale Output:
3 mV/V
Output Resistance:
350 (+/- 3) ohms
Input Resistance:
385 (+/- 5) ohms
Operating Temperature Range:
-40ā€šĀ° F to 150ā€šĀ° F / -40ā€šĀ°C to 65ā€šĀ°C
Seal Type:
IP67 Environmentally Sealed
Nonlinearity:
0.02% full scale
Hysteresis:
0.02% full scale
Insulation Resistance:
5000 megohms
Cable Length:
20 ft
Cable Diameter:
0.200 polyurethane jacket
Interchange:
RL20000
Weigh Modules Available:
ITCM - Isolated Tension Cell Mount
