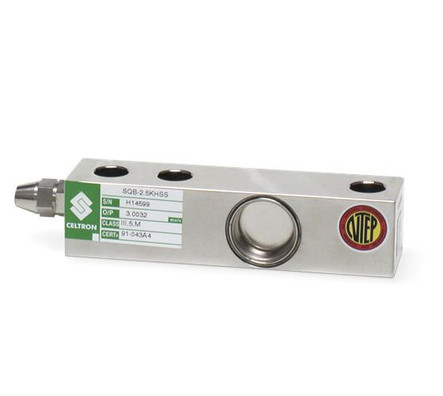

Celtron SQB-10KHSS 10,000 lb Stainless Steel Single Ended Beam Load Cell
Features
- 10,000 lb / 4535.9kg capacity rating
- NTEP 1:5000 III
- Stainless steel construction
- Welded seal IP67 rating
- 3 mV/V output
- Load cell cable length 20 ft
- Safe overload up to 150% capacity
- Safe side load up to 100% capacity
Common Applications
- OEM
- Floor scales
- Low profile scales
- Hoppers
- Tank scales
Interchange
- Rice Lake Weighing Systems RL35023
- VPG Sensortronics 65083
1 year limited manufacturer's warranty
- Manufacturer:
- Celtron
- Model:
- SQB-10KHSS
- Approvals:
- cFM, NTEP
- NTEP Class:
- 1:5000 III
- Capacity Rating:
- 10,000 lb / 4535.9 kg
- Safe Overload:
- 150% capacity
- Height:
- 1.5"
- Length:
- 6.75"
- Width:
- 1.5"
- Hole Threading:
- 3/4-16UNF
- Construction / Finish:
- Stainless steel
- Cable Color Code:
- Red = + Excitation, Black = - Excitation, Green = + Signal, White = - Signal, Bare = Shield
- Rated Excitation:
- 5-10 VDC (maximum of 15 V)
- Full Scale Output:
- 3 mV/V
- Output Resistance:
- 350 (+/- 3) ohms
- Input Resistance:
- 385 (+/- 5) ohms
- Compensated Temperature Range:
- 14°F to 104°F (-10°C to 40°C)
- Operating Temperature Range:
- -40° F to 150° F / -40°C to 65°C
- Seal Type:
- IP67 Welded seal
- Combined Error:
- 0.02% full scale
- Insulation Resistance:
- 5000 megohms
- Cable Length:
- 20 ft
- Cable Diameter:
- 0.200 polyurethane jacket
- Interchange:
- RL35023, VPG Sensortronics 65083
- Weigh Modules Available:
- RL 1800 Series
