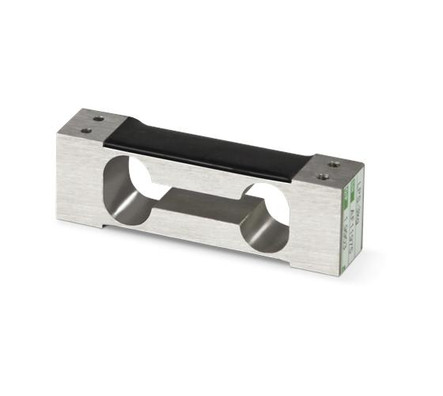

Celtron LPS-15 kg Aluminum Single Point Load Cell
Features
- 15 kg / 33.1 lb capacity rating
- NTEP 1:5000 III
- Aluminum construction
- Environmentally sealed IP65 rating
- 2 mV/V output
- 350 ohm output resistance
- Load cell cable length 16.5 inches
- Safe overload up to 150% capacity
- Max platform size 13.75" x 13.75"
Common Applications
- OEM
- Bench scales
- Counting scales
- Checkweighing scales
Interchange
- Rice Lake Weighing Systems RL1521A
- VPG Tedea-Huntleigh 1022
- VPG BLH C2G1
- NMB C2G1
1 year limited manufacturer's warranty
- Manufacturer:
- Celtron
- Model:
- LPS-15 kg
- Approvals:
- cFM, NTEP
- NTEP Class:
- 1:5000 III
- Capacity Rating:
- 15 kg / 33.1 lb
- Length:
- 5.12"
- Height:
- 0.87"
- Width:
- 1.18"
- Threading:
- M6 x 1.0
- Safe Overload:
- 150% capacity
- Construction / Finish:
- Aluminum
- Cable Color Code:
- Red = + Excitation, Black = - Excitation, Green = + Signal, White = - Signal, Bare = Shield
- Rated Excitation:
- 5-10 VDC (maximum of 15 V)
- Full Scale Output:
- 3 mV/V
- Output Resistance:
- 350 (± 3) ohm
- Input Resistance:
- 410 (± 15) ohm
- Compensated Temperature Range:
- 14‚°F to 104‚°F (-10‚°C to 40‚°C)
- Operating Temperature Range:
- -40‚° F to 150‚° F / -40‚°C to 65‚°C
- Seal Type:
- Environmentally sealed, IP65
- Combined Error:
- 0.25% full scale
- Non-Repeatability:
- 0.02% full scale
- Insulation Resistance:
- 5000 megohms
- Cable Length:
- 16.5 inches
- Cable Diameter:
- 0.14 PVC jacket
- Max Platform Size:
- 13.75 in x 13.75 in
