Discontinued by the Manufacturer

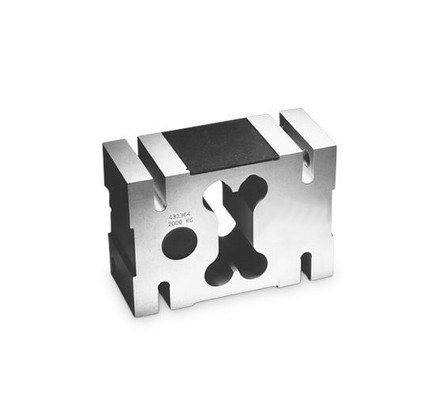

Celtron HOC-750 kg Aluminum Single Point Load Cell
Features
- 750 kg / 1653.5 lb capacity rating
- Anodized aluminum construction
- Environmentally sealed IP65 rating
- 2 mV/V output
- 350 ohm output resistance
- Load cell cable length 20 ft
- Safe overload up to 150% capacity
- Max platform size 4' x 4'
Common Applications
- OEM
- Low profile scales
- Floor scales
- Weigh bars
- Hanging scales
Interchange
- VPG Tedea-Huntleigh 1320
1 year limited manufacturer's warranty
- Manufacturer:
- Celtron
- Model:
- HOC-750 kg
- Capacity Rating:
- 750 kg / 1653.5 lb
- Length:
- 6.93"
- Height:
- 4.92"
- Width:
- 1.81"
- Safe Overload:
- 150% capacity
- Construction / Finish:
- Anodized Aluminum
- Cable Color Code:
- Red = + Excitation, Black = - Excitation, Green = + Signal, White = - Signal, Bare = Shield
- Rated Excitation:
- 5-10 VDC (maximum of 15 V)
- Full Scale Output:
- 2 mV/V
- Output Resistance:
- 350 (± 3) ohm
- Input Resistance:
- 410 (± 10) ohm
- Operating Temperature Range:
- -40° F to 150° F / -40°C to 65°C
- Seal Type:
- Environmentally sealed, IP65
- Total Error:
- 0.02% full scale
- Cable Length:
- 20'
- Max Platform Size:
- 4' x 4'
