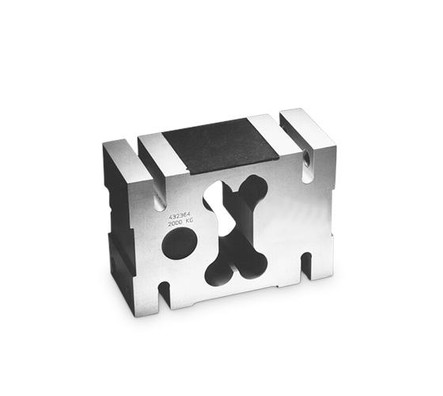

Celtron HOC-1000 kg Aluminum Single Point Load Cell

MSRP: $400.00
$336.00
(Save $64.00)
Part #:
42118
Availability:
Discontinued

Discontinued by the Manufacturer

Celtron HOC-1000 kg Aluminum Single Point Load Cell

Features

  • 1000 kg / 2204.6 lb capacity rating
  • Anodized aluminum construction
  • Environmentally sealed IP65 rating
  • 2 mV/V output
  • 350 ohm output resistance
  • Load cell cable length 20 ft
  • Safe overload up to 150% capacity
  • Max platform size 4' x 4'

Common Applications

  • OEM
  • Low profile scales
  • Floor scales
  • Weigh bars
  • Hanging scales

Interchange

  • VPG Tedea-Huntleigh 1320
1 year limited manufacturer's warranty
Manufacturer:
Celtron
Model:
HOC-1000 kg
Capacity Rating:
1000 kg / 2204.6 lb
Length:
6.93"
Height:
4.92"
Width:
1.81"
Safe Overload:
150% capacity
Construction / Finish:
Anodized Aluminum
Cable Color Code:
Red = + Excitation, Black = - Excitation, Green = + Signal, White = - Signal, Bare = Shield
Rated Excitation:
5-10 VDC (maximum of 15 V)
Full Scale Output:
2 mV/V
Output Resistance:
350 (Ā± 3) ohm
Input Resistance:
410 (Ā± 10) ohm
Operating Temperature Range:
-40Ā‚Ā° F to 150Ā‚Ā° F / -40Ā‚Ā°C to 65Ā‚Ā°C
Seal Type:
Environmentally sealed, IP65
Total Error:
0.02% full scale
Cable Length:
20'
Max Platform Size:
4' x 4'
