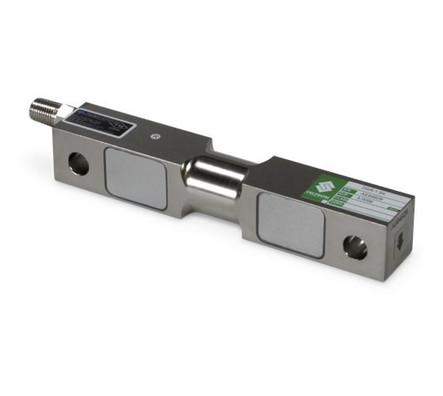

Celtron DSR-25K 25,000 lb Double Ended Beam Load Cell
Features
- 25,000 lb / 11,339.8 kg capacity rating
- High-alloy steel, nickel plated
- Environmentally sealed IP67 rating
- 3 mV/V output
- Load cell cable length 25 ft
- Safe overload up to 150% capacity
- Safe side load up to 100% capacity
Common Applications
- OEM
- Tank/Hopper/Silo scales
Interchange
- Rice Lake Weighing Systems RL75016
- Rice Lake Weighing Systems RL75016WHE
- VPG Sensortronics 65016
- VPG Revere 5203
1 year limited manufacturer's warranty
- Manufacturer:
- Celtron
- Model:
- DSR-25K
- Approvals:
- cFM
- Capacity Rating:
- 25,000 lb / 11,339.8 kg
- Safe Overload:
- 150% capacity
- Length:
- 8.75"
- Construction / Finish:
- High-alloy steel, nickel plated
- Cable Color Code:
- Red = + Excitation, Black = - Excitation, Green = + Signal, White = - Signal, Bare = Shield
- Rated Excitation:
- 5-10 VDC (maximum of 15 V)
- Full Scale Output:
- 3 mV/V
- Output Resistance:
- 700 (± 5) ohm
- Input Resistance:
- 770 (± 10) ohm
- Operating Temperature Range:
- -40° F to 150° F / -40°C to 65°C
- Seal Type:
- Environmentally sealed, IP67
- Nonlinearity:
- 0.03% full scale
- Hysteresis:
- 0.02% full scale
- Insulation Resistance:
- 5000 megohms
- Cable Length:
- 25 ft
- Cable Diameter:
- 0.200 polyurethane jacket
- Weigh Modules Available:
- Rice Lake Weighing Systems RL1600 Series
