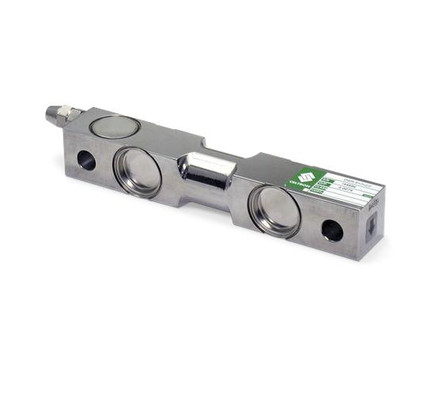

Celtron DSR-20K-HSS 20,000 lb Stainless Steel Double Ended Beam Load Cell

MSRP: $600.00
$504.00
(Save $96.00)
Part #:
76552
Availability:
Discontinued

Discontinued by the Manufacturer

Celtron DSR-20K-HSS 20,000 lb Stainless Steel Double Ended Beam Load Cell

Features

  • 20,000 lb / 9071.9 kg capacity rating
  • Stainless steel construction
  • Welded seal IP67 rating
  • 3 mV/V output
  • Load cell cable length 25 ft
  • Safe overload up to 150% capacity
  • Safe side load up to 100% capacity

Common Applications

  • OEM
  • Tank/Hopper/Silo scales

Interchange

  • Rice Lake Weighing Systems RL75016SS
  • Rice Lake Weighing Systems RL75016WHE
  • VPG Sensortronics 65016W
  • VPG Revere 9203
1 year limited manufacturer's warranty
Manufacturer:
Celtron
Model:
DSR-20K-HSS
Approvals:
cFM
Capacity Rating:
20,000 lb / 9071.9 kg
Safe Overload:
150% capacity
Length:
8.75"
Width:
1.44"
Height:
1.94"
Construction / Finish:
Stainless steel
Cable Color Code:
Red = + Excitation, Black = - Excitation, Green = + Signal, White = - Signal, Bare = Shield
Rated Excitation:
5-10 VDC (maximum of 15 V)
Full Scale Output:
3 mV/V
Output Resistance:
700 (Ā± 5) ohm
Input Resistance:
770 (Ā± 10) ohm
Operating Temperature Range:
-40Ā‚Ā° F to 150Ā‚Ā° F / -40Ā‚Ā°C to 65Ā‚Ā°C
Seal Type:
Welded seal IP67
Combined Error:
0.07% full scale
Insulation Resistance:
5000 megohms
Cable Length:
25 ft
Cable Diameter:
0.200 polyurethane jacket
Weigh Modules Available:
Rice Lake Weighing Systems RL1600 Series
