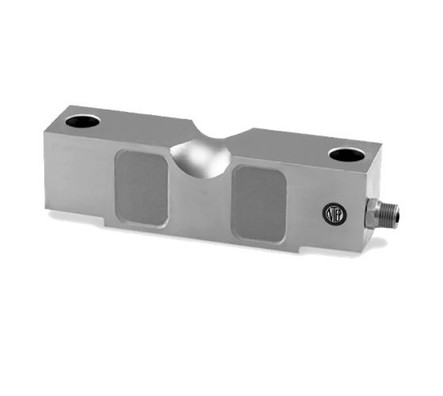

Celtron CLB-75K 75,000 lb Double Ended Beam Load Cell
Features
- 75,000 lb / 34,019.5 kg capacity rating
- NTEP 1:10,000 IIIL
- High-alloy steel, nickel plated
- Environmentally sealed IP67 rating
- 3 mV/V output
- 700 ohm output resistance
- Load cell cable length 35 ft
- Safe overload up to 150% capacity
- Safe side load up to 100% capacity
Common Applications
- Truck scales
Interchange
- Rice Lake Weighing Systems RL750581
- VPG Sensortronics 65058A
1 year limited manufacturer's warranty
- Manufacturer:
- Celtron
- Model:
- CLB-75K
- Approvals:
- cFM, NTEP
- NTEP Class:
- 1:10,000 IIIL
- Capacity Rating:
- 75,000 lb / 34,019.5 kg
- Safe Overload:
- 150% capacity
- Construction / Finish:
- High-alloy steel, nickel plated
- Cable Color Code:
- Red = + Excitation, Black = - Excitation, Green = + Signal, White = - Signal, Bare = Shield
- Rated Excitation:
- 5-10 VDC (maximum of 15 V)
- Full Scale Output:
- 3 mV/V
- Output Resistance:
- 700 (± 5) ohm
- Input Resistance:
- 770 (± 10) ohm
- Compensated Temperature Range:
- 14°F to 104°F (-10°C to 40°C)
- Operating Temperature Range:
- -40° F to 150° F / -40°C to 65°C
- Seal Type:
- Environmentally sealed, IP67
- Combined Error:
- 0.02% full scale
- Insulation Resistance:
- 5000 megohms
- Cable Length:
- 35 ft
- Cable Diameter:
- 0.305 polyurethane jacket
- Weigh Modules Available:
- Rice Lake Weighing Systems MVS
