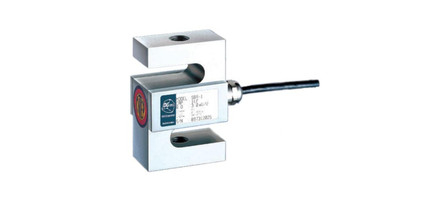

CAS SBA-300L 300 lb S-Beam Load Cell, NTEP
Features
- 300 lb capacity rating
- Nickel plated tool steel
- IP 65 rating
- 3 mV/V output
- Load cell cable length 20 ft
- 1 year limited manufacturer's warranty
- NTEP Approved CC 96-073A1
- Safe overload up to 150% capacity
Interchange Options
- Artech 20210
- CAS SB
- Celtron STC
- Rice Lake RL20000/20001
- Revere 363
- Sensortronics 60001
Documentation
1 year limited manufacturer's warranty
- Manufacturer:
- CAS
- Model:
- CAS-SBA-300L
- Capacity:
- 300 lb
- NTEP:
- Yes
- Class:
- III
- CC:
- 96-073A1
- Safe Overload:
- 150% capacity
- Length:
- 2"
- Width:
- 0.5"
- Height:
- 3"
- Hole Threading:
- 3/8 - 24UNF
- Construction / Finish:
- tool steel, nickel plated
- Cable Color Code:
- Red = + Excitation, Black = - Excitation, Green = + Signal, White = - Signal, Clear = Shield
- Rated Excitation:
- 10 VDC (maximum of 15 V)
- Full Scale Output:
- 3.0 mV/V
- Input Resistance:
- 400 +/- 25 ohms
- Output Resistance:
- 350 +/- 3.5 ohms
- Compensated Temperature Range:
- -10°C to 40°C
- Operating Temperature Range:
- -30°C to 80°C
- IP Rating:
- IP65
- Seal Type:
- Environmentally Sealed
- Cable Length:
- 20 ft
