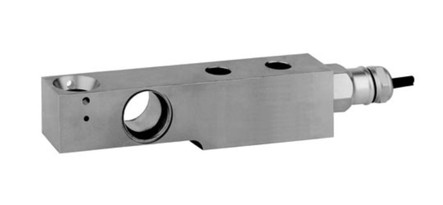

CAS SB4-11K 11,250 lb Stainless Steel Single Ended Beam Load Cell
Features
- 11,250 lb capacity rating
- Stainless steel construction
- IP 68 rating, hermetically sealed
- Perfect for use in harsh environments
- 2 mV/V output
- Load cell cable length 3 meter
- 1 year limited manufacturer's warranty
- Unique blinding hole
- High input resistance
- Safe overload up to 200% capacity
1 year limited manufacturer's warranty
- Manufacturer:
- CAS
- Model:
- CAS-SB4-11K
- Capacity:
- 11,250 lb
- Safe Overload:
- 200% capacity
- Length:
- 7.48"
- Width:
- 1.69"
- Height:
- 1.93"
- Mounting Bolts:
- M20 8.8
- Construction / Finish:
- Stainless Steel
- Cable Color Code:
- Green = + Excitation, Black = - Excitation, White = + Signal, Red = - Signal, Yellow = Shield
- Rated Excitation:
- 5 to 15 V
- Full Scale Output:
- 2.0 mV/V
- Input Resistance:
- 1100 +/- 50 ohms
- Output Resistance:
- 1000 +/- 2 ohms
- Compensated Temperature Range:
- -10°C to 40°C
- Operating Temperature Range:
- -40°C to 80°C
- Seal Type:
- Hermetically Sealed
- IP Rating:
- IP68
- Cable Length:
- 3 meter
