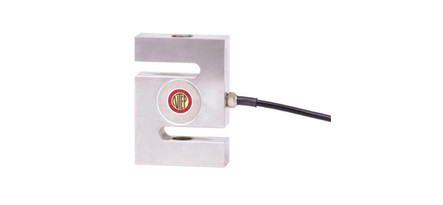

CAS SB-10K 10,000 lb S-Beam Load Cell
Features
- 10,000 lb capacity rating
- Nickel plated tool steel
- IP 67 rating
- Environmentally sealed
- 3 mV/V output
- Load cell cable length 20 ft
- 1 year limited manufacturer's warranty
- Safe overload up to 150% capacity
Interchange Options
- CAS SBA
- Celtron STC
- Rice Lake RL20000/20001
- Sensortronics 60001
1 year limited manufacturer's warranty
- Manufacturer:
- CAS
- Model:
- CAS-SB-10K
- Capacity:
- 10,000 lb
- Safe Overload:
- 150% capacity
- Length:
- 3.5"
- Width:
- 1"
- Height:
- 4.75"
- Hole Threading:
- 3/4 - 16UNF
- Construction / Finish:
- Alloy steel, nickel plated
- Cable Color Code:
- Red = + Excitation, Black = - Excitation, Green = + Signal, White = - Signal, Clear = Shield
- Rated Excitation:
- 10 VDC (maximum of 20 V)
- Full Scale Output:
- 3.0 mV/V
- Input Impedance:
- 385 +/- 10 ohms
- Output Impedance:
- 350 +/- 3 ohms
- Compensated Temperature Range:
- -10°C to 40°C
- Operating Temperature Range:
- -20°C to 60°C
- IP Rating:
- IP67
- Seal Type:
- Environmentally Sealed
- Cable Length:
- 20 ft
