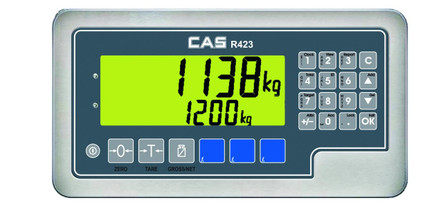

CAS R423-02-DM, R423 - AC PS, Desk Mount Stainless Steel Indicator, K402 Application Software, NTEP
Features:
- NTEP Class III / IIIL approved for use in legal for trade applications
- NTEP CC 11-050
- Stainless steel desk mount style
- Connects up to 16 - 350 ohm / 32 - 700 ohm load cells
- Standard option includes Bi-directional RS-232 and transmit only RS-485
- Up to 8 function inputs
- Up to 8 weight related setpoints
- IP66 rated
- Multi line display for monitoring more information simultaneously
- K402 application software
Applications
- Weighing
- Counting
- Peak Hold
- Totalizing
- Logic Setpoints
- Report Printing
- Products/Recipes/Trucks
Documentation
2 year limited manufacturer's warranty
- IP Rating:
- IP66
- NTEP:
- Yes
- CC:
- 11-050
- Class:
- III
- Resolution:
- Up to 100,000 divisions
- Zero Cancellation:
- ±2.0 mV/V
- Span Adjustment:
- 0.1 mV/V to 3.0 mV/V full scale
- Excitation:
- 7.4 V
- Load Cell Capability:
- Up to 16 x 350 or 32 x 700 ohm load cells
- Zero Range:
- Selectable from +/- 2% to +/- 20% full scale
- Units:
- lb, kg, custom
- Display:
- LCD with 4 alpha-numeric displays & LED backlighting
- Power:
- AC Power 110/240VAC 50/60Hz
- Standard Communication Option:
- RS232 Bi-directional and RS485 transmit only
- Operating Temperature:
- 4 F to 122 F
- Brand:
- CAS
- Model:
- R423-02-DM
- Application Software:
- K402
