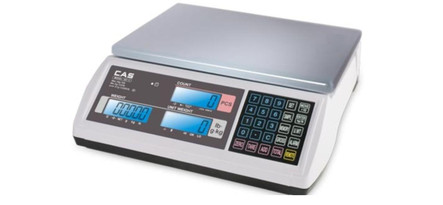

CAS EC2-6 Counting Scale, Dual Scale Capable, 6 lb x 0.0002 lb
The CAS EC2 series is an ideal solution for an affordable counting and checkweighing scale with dual scale capability. Dual scale capabilities means that the EC2 can be easily connected to a larger base such as a floor scale to provide a larger capacity for bulk applications. The EC2 features an impressive 1/600,000 internal resolution to help ensure accurate counts on extremely small pieces. The CAS EC2 is also capable of performing tasks such as general weighing, checkweighing, and accumulation. For checkweighing applications the "Count" screen changes colors to identify if the sample is HI/OK/LO.
Features:
- 6 lb capacity
- 0.0002 lb readability
- Dual channel for second platform (up to 10 tons - 4 load cell platform)
- Internal resolution of 1/600,000
- Easily switch between lb, kg, and gram
- Operated with AC adapter or rechargeable battery (both included)
- RS-232C interface
- Full capacity tare
- Weighs in units kg, lb, grams
- Three backlight colors as HI/OK/LO indicators
- Soft touch tact keyboard
- Key command function
- 3 LCD displays to show all facets of the weighing operation
Applications
- Weighing
- Counting
- Checkweighing
- Accumulation
Documentation
2 year limited manufacturer's warranty
- Scale Platform Capacity:
- 6 lb
- Scale Platform Readability:
- 0.0002 lb
- Second Scale Capabilities:
- Up to 10 tons, Up to 4 load cell platform
- Scale Platter Size:
- 12" x 8.7"
- Dimensions:
- 13" x 13.6" x 4.2"
- Operating Temperature:
- 14F - 104F
- Communication:
- RS-232C
- Display Type:
- LCD
- Internal Resolution:
- 1/600,000
- Safe Overload:
- 120% of Capacity
- Units:
- lb, kg, g
- Internal Memory:
- 200 presets
- Tare Range:
- Full capacity by subtraction
- Power:
- AC Adapter DC 12V / 850 mA, Rechargeable Battery - 6V, 5Ah
- Estimated Battery Life:
- 80 hours
- Brand:
- CAS
- Model:
- EC2-6
