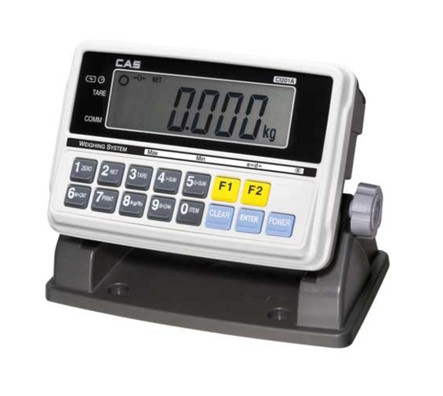

CAS CI-201A Digital Indicator, NTEP
The CAS CI-200 series digital indicator is a versatile and affordable general purpose weighing indicator. The CI-201A in particular is constructed of a hardened plastic NEMA 12 enclosure and can operate off of a rechargeable battery or AC adapter, both included. It also features a full function numeric keypad, wall/desk mount, hi/low alarm, and more!
Features
- NTEP CC 11-026
- Measurement Canada COC AM-5903
- NEMA 12 plastic construction
- Standard RS232 output port
- AC/DC power adapter included
- Large 1" LCD display with backlight
- Full function numeric keypad
- ID capabilities
- Time and date
- Hi/Lo Alarm
- Display resolution up to 1/10,000
- Supports up to 8 load cells at 350 ohm
Applications
- General Weighing
- Accumulation
- Checkweighing
- Counting
Documentation
2 year limited manufacturer's warranty
- NTEP:
- Yes
- CC:
- 11-026
- Class:
- III
- Maximum Displayed Resolution:
- 10,000 divisions
- Excitation:
- 5 VDC
- Load Cell Capability:
- Up to 8 x 350
- Units:
- Kg, lb
- Display:
- 6-digit, 1" LCD
- Power:
- AC Adapter / Rechargeable Battery
- Battery Operating Time:
- 30 hrs
- Standard Communication Option:
- RS232
- Operating Temperature:
- 14° F to 104° F (-10° C to 40° C)
- Brand:
- CAS
- Model:
- CI-201A
