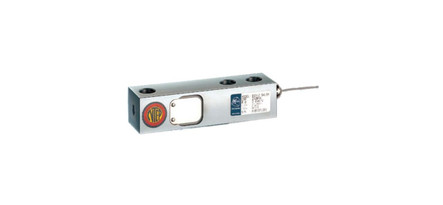

CAS BSA-5KSE 5000 lb Single Ended Beam Load Cell, Small, NTEP
CAS BSA single ended beam load cells are most commonly used in platform scales and other medium capacity weighing applications.
Features
- Small envelope
- 5000 lb capacity rating
- High alloy steel construction, nickel plated
- IP 66 rating
- 3 mV/V output
- Load cell cable length 20 ft
- 1 year limited manufacturer's warranty
- NTEP Approved CC 96-072A1
- Safe overload up to 150% capacity
Interchange Options
- Artech 30310
- CAS 23
- Celtron SQB
- Rice Lake RL30000
- Revere 5123
- Sensortronics 65023
- Tedea 3421
Documentation
1 year limited manufacturer's warranty
- Manufacturer:
- CAS
- Model:
- BSA-5KSE
- Capacity:
- 5000 lb
- NTEP:
- Yes
- Class:
- III
- CC:
- 96-072A1
- Safe Overload:
- 150% capacity
- Length:
- 5.12"
- Width:
- 1.25"
- Height:
- 1.25"
- Hole Threading:
- 1/2-20UNF-2B
- Construction / Finish:
- tool steel, nickel plated
- Cable Color Code:
- Red = + Excitation, Black = - Excitation, Green = + Signal, White = - Signal, Clear = Shield
- Rated Excitation:
- 10 VDC (maximum of 15 V)
- Full Scale Output:
- 3.0 mV/V
- Bridge Resistance:
- 350 ohms nominal
- Compensated Temperature Range:
- -10°C to 40°C
- Operating Temperature Range:
- -30°C to 80°C
- Seal Type:
- IP66 Environmentally Sealed
- Cable Length:
- 20 ft
