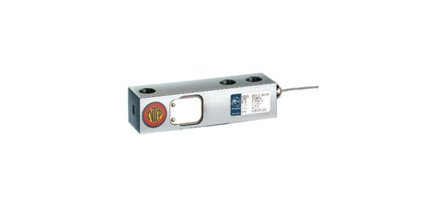

CAS BSA-3K 3000 lb Single Ended Beam Load Cell, NTEP
CAS BSA single ended beam load cells are most commonly used in platform scales and other medium capacity weighing applications.
Features
- 3000 lb capacity rating
- High alloy steel construction, nickel plated
- IP 66 rating
- 3 mV/V output
- Load cell cable length 20 ft
- 1 year limited manufacturer's warranty
- NTEP Approved CC 96-072A1
- Safe overload up to 150% capacity
Interchange Options
- Artech 30310
- CAS 23
- Celtron SQB
- Rice Lake RL30000
- Revere 5123
- Sensortronics 65023
- Tedea 3421
Documentation
1 year limited manufacturer's warranty
- Manufacturer:
- CAS
- Model:
- BSA-3K
- Capacity:
- 3000 lb
- NTEP:
- Yes
- Class:
- III
- CC:
- 96-072A1
- Safe Overload:
- 150% capacity
- Length:
- 5.12"
- Width:
- 1.25"
- Height:
- 1.25"
- Hole Threading:
- 1/2-20UNF-2B
- Construction / Finish:
- tool steel, nickel plated
- Cable Color Code:
- Red = + Excitation, Black = - Excitation, Green = + Signal, White = - Signal, Clear = Shield
- Rated Excitation:
- 10 VDC (maximum of 15 V)
- Full Scale Output:
- 3.0 mV/V
- Bridge Resistance:
- 350 ohms nominal
- Compensated Temperature Range:
- -10°C to 40°C
- Operating Temperature Range:
- -30°C to 80°C
- Seal Type:
- IP66 Environmentally Sealed
- Cable Length:
- 20 ft
