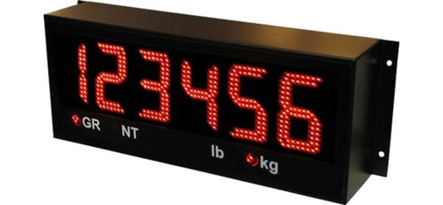

CAS Beacon 45 B45RD Remote Display, 4.5 Inch LED Display
Features
- Visibility Range estimated at 250 ft
- Super bright high intensity LED's are easy to read even in direct sunlight
- 4.5" tall displayed digits
- Non-glare lens for optimal clarity
- 1 or 2 decimal places
- 4 annunciator lights (GR, NT, lb, kg)
- Communication options include RS-232 / RS-422 / RS-485 Multi-drop or 20mA Current Loop (Active & Passive)
- 6 ft power cable to 100 - 240 VAC 50/60 Hz
- Auto-Learn technology enables every Beacon Series Remote Display to learn indicator data formats and output strings
- Command mode for custom strings
- Energy efficient power saving mode available
- Selectable day and night brightness levels
- Automatic sensor adjusts to light conditions
- Weather proof enclosure with breather vent
- Optically isolated port for lightning protection
Documentation
2 year limited manufacturer's warranty
- Manufacturer:
- CAS
- Model:
- B45RD
- Viewing Range:
- 250 ft
- Lights:
- High intensity LED
- Digit Height:
- 4.5"
- Digits:
- 6 digits
- Annunciators:
- 4 Annunciator Lights (GR, NT, lb, kg)
- Decimal Place Capability:
- 1 or 2 decimal places
- Communication Capabilities:
- RS-232 / RS-422 / RS-485 Multi-drop or 20mA Current Loop (Active & Passive)
- Data Format:
- Auto-Learns Data String, Baud Rate, Data Bits, Parity, and Stop Bits or Command Mode for Custom Strings
- Power:
- 100 - 240 VAC 50/60 Hz
- Power Consumption:
- 1 A (25W)
- Enclosure:
- Mild Steel with Powder Coated Finish, Breather Vent, Waterproof
- Dimensions:
- 24" x 10" x 5"
- Operating Temperature:
- -40 F to 120 F
