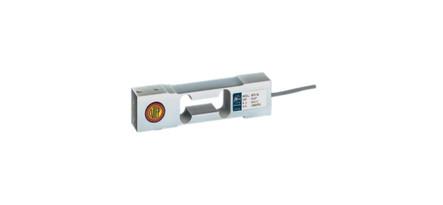

CAS BCA-100L 100 kg Single Point Load Cell, NTEP
Features
- 100 kg capacity rating
- NTEP Class III
- NTEP CC 96-131
- IP 65 rating
- 2 mV/V output
- Load cell cable length 10 ft
- 1 year limited manufacturer's warranty
- Safe overload up to 150% capacity
Interchange Options
- Celtron LOC
- Rice Lake RL1040
- Revere 642
- Sensortronics 65089
- Tedea 1040
Documentation
1 year limited manufacturer's warranty
- Manufacturer:
- CAS
- Model:
- BCA-100L
- NTEP:
- Yes
- Class:
- III
- CC:
- 96-131A3
- Capacity:
- 100 kg
- Safe Overload:
- 150% capacity
- Length:
- 5.91"
- Width:
- 0.98"
- Height:
- 1.57"
- Hole Threading:
- 1/4 - 20UNC - 28
- Construction / Finish:
- Aluminum alloy
- Cable Color Code:
- Red = + Excitation, Black = - Excitation, Green = + Signal, White = - Signal, Blue = + Sense, Brown = - Sense, Clear = Shield
- Rated Excitation:
- 10 VDC (maximum of 15 V)
- Full Scale Output:
- 2 mV/V
- Input Resistance:
- 400 +/- 20 ohms
- Output Resistance:
- 350 +/- 3.5 ohms
- Compensated Temperature Range:
- -10°C to 40°C
- Operating Temperature Range:
- -20°C to 70°C
- IP Rating:
- IP65
- Seal Type:
- Environmentally Sealed
- Cable Length:
- 10 ft
