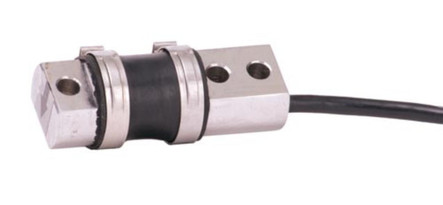

CAS 60040-500L 500 lb Stainless Steel Single Ended Beam Load Cell
Features
- 500 lb capacity rating
- Stainless steel construction
- IP 67 rating
- 3 mV/V output
- Load cell cable length 30 ft
- 1 year limited manufacturer's warranty
- Safe overload up to 150% capacity
Interchange Options
- Artech 50210
- Rice Lake RL50210
- Rice Lake RL502100SST
- Revere Transducers 5503
- Revere Transducers 9503
- Sensortronics 60040
1 year limited manufacturer's warranty
- Manufacturer:
- CAS
- Model:
- CAS-60040-500L
- Capacity:
- 500 lb
- Safe Overload:
- 150% capacity
- Length:
- 2.81"
- Width:
- 1.3"
- Height:
- .62"
- Construction / Finish:
- Stainless steel
- Cable Color Code:
- Green = + Excitation, Black = - Excitation, White = + Signal, Red = - Signal
- Rated Excitation:
- 10V AC/DC (20V Max)
- Full Scale Output:
- 3.0 mV/V
- Input Impedance:
- 385 +/- 10 ohms
- Output Impedance:
- 350 +/- 3 ohms
- Compensated Temperature Range:
- -10°C to 40°C
- Operating Temperature Range:
- -20°C to 60°C
- Seal Type:
- Environmentally Sealed
- IP Rating:
- IP67
- Cable Length:
- 30 ft
