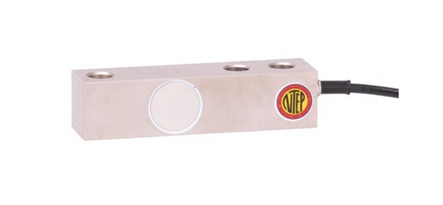

CAS 23LW2-10K 10,000 lb Stainless Steel Single Ended Beam Load Cell, Welded Seal
Features
- 10,000 lb capacity rating
- Threaded hole
- Stainless steel construction
- IP 67 rating
- Welded seal
- 2 mV/V output
- Load cell cable length 20 ft
- 1 year limited manufacturer's warranty
- Safe overload up to 150% capacity
Interchange Options
- Rice Lake - RL35082
- Sensortronics - 65083S
- Toledo - 715 Series
1 year limited manufacturer's warranty
- Manufacturer:
- CAS
- Model:
- CAS-23LW2-10K
- Capacity:
- 10,000 lb
- Safe Overload:
- 150% capacity
- Length:
- 6.75"
- Width:
- 1.5"
- Height:
- 1.5"
- Thread Size:
- 3/4 - 16 UNF
- Construction / Finish:
- Stainless steel
- Cable Color Code:
- Green = + Excitation, Black = - Excitation, White = + Signal, Red = - Signal
- Rated Excitation:
- 10V AC/DC (20V Max)
- Full Scale Output:
- 2 mV/V
- Input Impedance:
- 385 +/- 10 ohms
- Output Impedance:
- 350 +/- 3 ohms
- Compensated Temperature Range:
- -10°C to 40°C
- Operating Temperature Range:
- -20°C to 60°C
- Seal Type:
- Welded Seal
- IP Rating:
- IP67
- Cable Length:
- 20 ft
