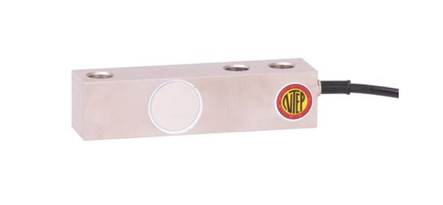

CAS 23LA-2K 2000 lb Single Ended Beam Load Cell
Features
- 2000 lb capacity rating
- Alloy steel
- IP 67 rating
- Environmentally sealed
- 3 mV/V output
- Load cell cable length 20 ft
- 1 year limited manufacturer's warranty
- Safe overload up to 150% capacity
Interchange Options
- Artech - 30310
- CAS - BSA
- Celtron - SQB
- HBM - A35
- Revere - 5123
- Rice Lake - RL35023
- Rice Lake - RL30000
- Sensortronics - 65023
- Tedea - 3411
- Totalcomp - TSB
1 year limited manufacturer's warranty
- Manufacturer:
- CAS
- Model:
- CAS-23LA-2K
- Capacity:
- 2000 lb
- Safe Overload:
- 150% capacity
- Length:
- 5.12"
- Width:
- 1.25"
- Height:
- 1.25"
- Thread Size:
- 1/2 - 20 UNF
- Construction / Finish:
- Alloy steel
- Cable Color Code:
- Green = + Excitation, Black = - Excitation, White = + Signal, Red = - Signal
- Rated Excitation:
- 10V AC/DC (20V Max)
- Full Scale Output:
- 3.0 mV/V
- Input Impedance:
- 385 +/- 10 ohms
- Output Impedance:
- 350 +/- 3 ohms
- Compensated Temperature Range:
- -10°C to 40°C
- Operating Temperature Range:
- -20°C to 60°C
- Seal Type:
- Environmentally Sealed
- IP Rating:
- IP67
- Cable Length:
- 20 ft
