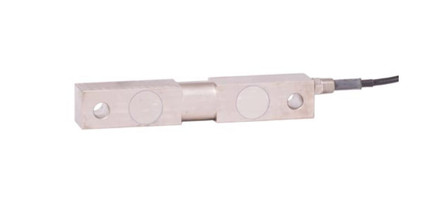

CAS 16LW-25K 25,000 lb Stainless Steel Double Ended Beam Load Cell
Features
- 25,000 lb capacity rating
- Stainless steel
- IP 67 rating
- Welded sealed
- 3 mV/V output
- Load cell cable length 50 ft
- 1 year limited manufacturer's warranty
- Safe overload up to 150% capacity
Interchange Options
- Celtron - DSR HHS
- Revere - 9203
- Rice Lake - RL75016SS
- Rice Lake - RL75016WHE
- Sensortronics - 65016W
- Sensortronics - 65016WH
1 year limited manufacturer's warranty
- Manufacturer:
- CAS
- Model:
- CAS-16LW-25K
- Capacity:
- 25,000 lb
- Safe Overload:
- 150% capacity
- Length:
- 8.75"
- Width:
- 1.94"
- Height:
- 1.44"
- Construction / Finish:
- Stainless steel
- Cable Color Code:
- Green = + Excitation, Black = - Excitation, White = + Signal, Red = - Signal
- Rated Excitation:
- 10V AC/DC (20V Max)
- Full Scale Output:
- 3.0 mV/V
- Input Impedance:
- 700 +/- 10 ohms
- Output Impedance:
- 700 +/- 5 ohms
- Compensated Temperature Range:
- -10°C to 40°C
- Operating Temperature Range:
- -20°C to 60°C
- Seal Type:
- Welded Seal
- IP Rating:
- IP67
- Cable Length:
- 50 ft
