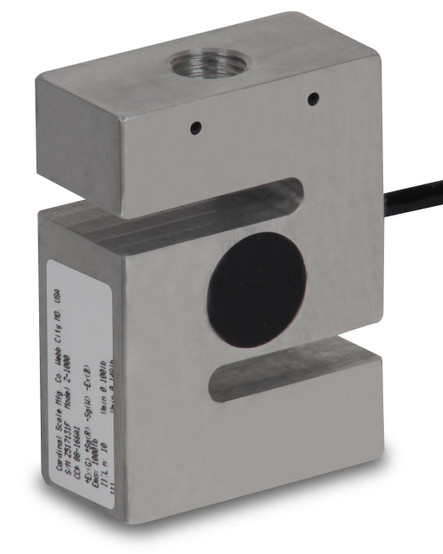

Cardinal Detecto Z-100 100 lb S-Beam Load Cell, NTEP
Features
- 100 lb capacity rating
- NTEP Approved CC# 88-166A1
- Aluminum construction
- Environmentally sealed IP67 rating
- 2 mV/V output
- Load cell cable length 2.5 ft
- 1 year limited warranty
- Safe overload up to 150% capacity
Common Applications
- OEM
- Suspended/hanging scales
- Tension scales
1 year limited manufacturer's warranty
- Manufacturer:
- Detecto
- Model:
- Z-100
- NTEP:
- Yes
- Certification:
- NTEP Approved Class III 1:5000 and IIIL 1:10,000
- Capacity:
- 100 lb
- Safe Overload:
- 150% capacity
- Ultimate Overload:
- 300% capacity
- Length:
- 1.5"
- Height:
- 3"
- Width:
- 0.5"
- Hole Threading:
- #10¢¬-32 NF
- Construction:
- Aluminum
- Cable Color Code:
- Green = + Excitation, Black = - Excitation, Red = + Signal, White = - Signal, Yellow = Shield
- Rated Excitation:
- 5-10 VDC (maximum of 15 V)
- Full Scale Output:
- 2 mV/V ± 10%
- Excitation Terminal Resistance:
- 415 ± 12 ohms
- Signal Terminal Resistance:
- 350 ± 5 ohms
- Insulation Resistance:
- 5000 megohms
- Seal Type:
- Environmentally sealed
- IP Rating:
- IP67
- Cable Length:
- 2.5 ft
