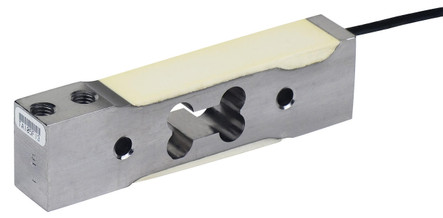

Cardinal Detecto TSSP-100KG 100 kg Stainless Steel Single Point Load Cell

MSRP: $559.00
$503.10
(Save $55.90)
Part #:
TSSP-100KG
Availability:
Vendor Direct - Typically ships in 5-10 days

Cardinal Detecto TSSP-100KG 100 kg Stainless Steel Single Point Load Cell

Features

  • 100 kg / 220 lb capacity rating
  • Stainless steel construction
  • Environmentally sealed with IP65 protection class
  • 2 mV/V output
  • Max platform size 400 mm x 400 mm
  • Load cell cable length 3 meters
  • 1 year limited warranty
  • Safe overload up to 150% capacity

Common Applications

  • OEM
  • Packaging Scales
  • Bench Scales
  • Platform Scales
  • Hanging Scales
  • Counting Scales
  • Medical Scales
1 year limited manufacturer's warranty
Manufacturer:
Detecto
Model:
TSSP-100KG
Capacity:
100 kg / 220 lb
Safe Overload:
150% capacity
Length:
5.91"
Height:
1.57"
Width:
1"
Construction:
Stainless steel
Cable Color Code:
Red = + Excitation, Black = - Excitation, Green = + Signal, White = - Signal, Yellow = Ground
Recommended Excitation Voltage:
10 VDC (maximum of 15 V)
Full Scale Output:
2 mV/V
Excitation Terminal Resistance:
435 Ā±10 ohms
Signal Terminal Resistance:
350 Ā± 5 ohms
Insulation Resistance:
5000 megohms
Seal Type:
Environmentally sealed
IP Rating:
IP65
Cable Length:
10 ft
