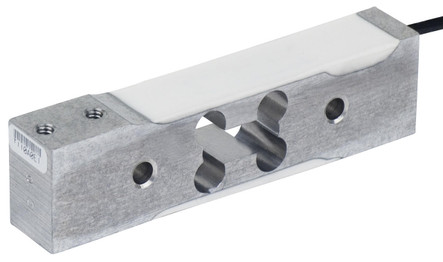

Cardinal Detecto TSP-100KGP 100 kg Single Point Load Cell, NTEP
Features
- 100 kg capacity rating
- NTEP approved legal for trade
- NTEP CC #97-136
- Aluminum construction
- Environmentally sealed with IP65 protection class
- 2 mV/V output
- Max platform size 400 mm x 400 mm
- Load cell cable length 3 meters
- 1 year limited warranty
- Safe overload up to 150% capacity
Common Applications
- OEM
- Packaging Scales
- Bench Scales
- Platform Scales
- Hanging Scales
- Counting Scales
- Medical Scales
1 year limited manufacturer's warranty
- Manufacturer:
- Detecto
- Model:
- TSP-100KGP
- NTEP:
- Yes
- NTEP CC#:
- 97-136
- Capacity:
- 100 kg
- Safe Overload:
- 150% capacity
- Length:
- 150.1 mm
- Height:
- 39.9 mm
- Width:
- 25.4 mm
- Construction:
- Aluminum
- Cable Color Code:
- Red = + Excitation, Black = - Excitation, Green = + Signal, White = - Signal, Yellow = Ground
- Recommended Excitation Voltage:
- 10 VDC (maximum of 15 V)
- Full Scale Output:
- 2 mV/V
- Excitation Terminal Resistance:
- 435 ±10 ohms
- Signal Terminal Resistance:
- 350 ± 5 ohms
- Insulation Resistance:
- 5000 megohms
- Seal Type:
- Environmentally sealed
- IP Rating:
- IP65
- Cable Length:
- 3 meters
