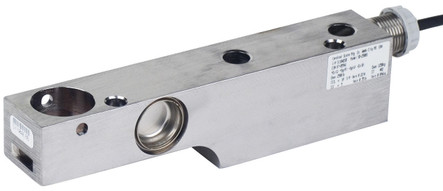

Cardinal Detecto SB-10000S 10,000 lb Stainless Steel Single Ended Beam Load Cell, NTEP
Features
- 10,000 lb capacity rating
- NTEP approved legal for trade
- NTEP CC # 87-059
- Stainless steel construction
- Environmentally sealed with IP68 protection class
- 2 mV/V output
- Load cell cable length 20 feet
- 1 year limited warranty
- Safe overload up to 150% capacity
Common Applications
- OEM
- Floor Scales
- Tank Scales
1 year limited manufacturer's warranty
- Manufacturer:
- Detecto
- Model:
- SB-10000S
- Capacity:
- 10,000 lb
- Safe Overload:
- 150% capacity
- Length:
- 9"
- Height:
- 2.46"
- Conduit Thread:
- 1/2-14 NPTF Pipe Thread
- Construction:
- Stainless steel
- Cable Color Code:
- Green = + Excitation, Black = - Excitation, Red = + Signal, White = - Signal, Yellow = Ground
- Recommended Excitation Voltage:
- 10 VDC (maximum of 15 V)
- Full Scale Output:
- 2 mV/V
- Excitation Terminal Resistance:
- 386 ± 20 ohms
- Signal Terminal Resistance:
- 350 ± 5 ohms
- Insulation Resistance:
- 5000 megohms
- Seal Type:
- Environmentally sealed
- IP Rating:
- IP68
- Cable Length:
- 20 ft
