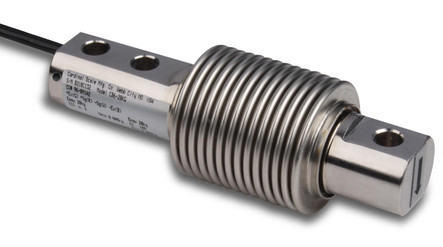

Cardinal Detecto CB6-100KG Stainless Steel Single Ended Beam Load Cell, NTEP

Discontinued

Part #:
CB6-100KG
Availability:
Vendor Direct - Typically ships in 5-10 days

Discontinued

Features

  • 100 kg capacity rating
  • NTEP Class III approved legal for trade
  • NTEP CC #96-091
  • Stainless steel construction
  • Environmentally sealed with IP68 protection class
  • 2 mV/V output
  • Load cell cable length 3 meters
  • 1 year limited warranty
  • Safe overload up to 150% capacity

Common Applications

  • OEM
  • Floor Scales
  • Tank Scales
  • Packaging Scales
  • Flexture Bases
1 year limited manufacturer's warranty
Manufacturer:
Detecto
Model:
CB6-100KG
Capacity:
100 kg
Safe Overload:
150% capacity
Length:
4.7"
Height:
1.8"
Construction:
Stainless steel
Cable Color Code:
Green = + Excitation, Black = - Excitation, Red = + Signal, White = - Signal, Yellow = Ground
Recommended Excitation Voltage:
10 VDC (maximum of 15 V)
Full Scale Output:
2 mV/V
Excitation Terminal Resistance:
400 Ā± 20 ohms
Signal Terminal Resistance:
350 Ā± 5.25 ohms
Insulation Resistance:
5000 megohms
Seal Type:
Environmentally sealed
IP Rating:
IP68
Cable Length:
3 meters
