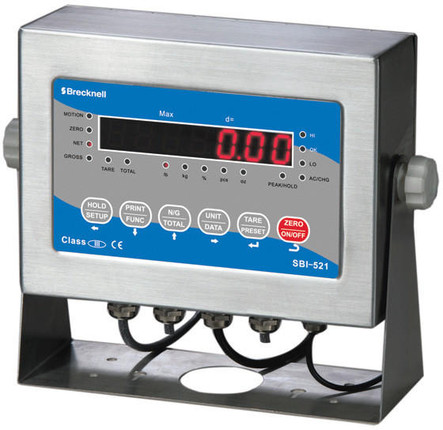

Brecknell SBI-521 LED Digital Indicator, NTEP
The SBI-521 LED digital indicator is an affordable and effective option for a wide variety of applications. The SBI-521 can drive up to eight 350 ohm load cells and is NTEP approved for legal for trade applications. The digital indicator is constructed out of heavy duty stainless steel and carries an IP65 rating. The SBI-521 LED version features a 0.7" red LED display with up to seven digits.
Due to an efficiency regulation, this product cannot be shipped to the State of California. This item is pending CEC approval.
Features
- NTEP approved Legal for Trade
- IP65 rated
- Drives up to 8 load cells at 350 ohms
- Powered by AC adapter or rechargeable battery(included)
- Constructed of heavy duty stainless steel with stainless steel swivel stand
- Programmable auto off feature
- Time and date
- Calibration through front panel access
- Four point calibration
- Red seven digit, seven segment 0.7" LED
- Serial Port1 Full-duplex RS-232
- Serial Port2: Full-duplex RS-232 or half-duplex RS-485
Applications
- General Weighing
- Checkweighing
- Counting
- Animal Weighing
- Percentage Weighing
- Accumulation
1 year limited warranty
- Manufacturer:
- Brecknell
- Model:
- SBI-521 LED
- NTEP:
- Yes
- NTEP Class:
- Class III 1:10,000
- NTEP CC:
- #11-119
- Other Approvals:
- Measurement Canada and CE
- Displayed Resolution:
- 100 -100,000d primary units
- Constuction:
- Heavy duty stainless steel IP65 with stainless steel swivel stand
- Annunciators:
- -0-, motion, Gross, Net, tared, Total, pcs, lb, kg, Lo, OK, Hi
- Keys:
- On/Off, Total, Count, kg/lb, Gross, Tare, Zero, Print
- Display:
- Seven digit, seven segment, 17 mm / 0.7" LED
- Power:
- Adapter or rechargeable battery
- Battery:
- 6 volt 4 AH rechargeable internal lead acid battery
- Battery Life:
- Approximately 30 hours continuous
- Communication:
- 2 ports, Port 1 : RS-232, Port 2 : RS-232 or half-duplex RS-485
- Baud Rate:
- Selectable: 1200-2400-4800-9600-19200- 38400-57600 bps
- Data Output Format:
- 8N1, 7O1, 7E1
- Protocol:
- Programmable
- Clock:
- Built-in nonvolatile real time & date
- Print Format:
- Selectable Gross Weight, Tare, Net, Time/ Date, Scale ID, Percent, Count, Piece Weight, Total
- Units:
- kg, lb, lb:oz, PCS, %
- Tare Range:
- 100% subtractive
- Capabilities:
- Drives up to eight loadcells at 350 ohms
- Max Sensitivity:
- -3 mV/V to +3 mV/V
- Time and Date:
- Standard
- Operating Temperature:
- -10° C to 40° C / 14° F to 104° F
- Indicator Dimension:
- 3.5" L x 10.5" W x 8.5" H
- IP Rating:
- IP65
- Calibration:
- Front panel access
- Calibration Type:
- Up to four points
