This item has been discontinued by the manufacturer.
Replacement items are SBI-210 and SBI-100 to SBI-200 Converter Lead. Both items required to replace SBI-100.

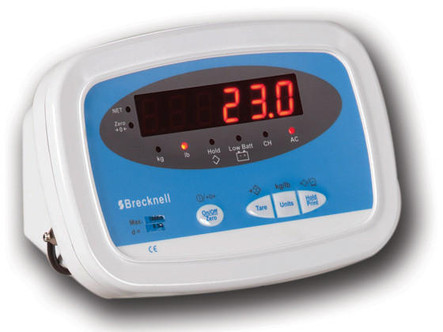

Brecknell SBI 100 Digital Indicator
The SBI 100 indicator is an affordable simple to operate weight indicator designed for use in a wide range of applications. The hold feature in the SBI 100 allows the operator to freeze and store an accurate reading in unstable weighing conditions. The SBI 100 is compatible with the complete range of Brecknell platform scales and can be connected to any platform with a maximum of four 350 ohm load cells for use in non-trade applications.
Features
- Drives up to four load cells; compatible with all Brecknell platforms and any system with up to four 350 ohm load cells
- Powered by AC adapter or rechargeable battery (included)
- Auto off feature for preserving power
- Operating keys include On/Off/Zero, Tare, Units, Hold/Print
- Standard animal weighing software
- Constructed out of durable ABS plastic
- Wall bracket and desk mount included
- RS-232 with communication cable included
- Calibration through front panel access
- LED display is six 0.8" digits
- Internal resolution of 1:520,000
1 year limited warranty
- Manufacturer:
- Brecknell
- Model:
- SBI 100
- Resolution:
- 500 -100,000d; internal approximately 520,000 counts
- Constuction:
- ABS plastic
- Annunciators:
- kg, lb, hold, low, batt, ch, ac
- Keys:
- On/Off/Zero, Tare, Units, Hold/Print
- Display:
- Six digit 20 mm / 0.8" high red LED
- Power:
- Adapter or rechargeable battery (both included)
- Battery Type:
- 6V4AH lead acid battery
- Battery Life:
- Approximately 20 hours continuous use
- Communication:
- RS-232 (cable included)
- Units:
- lb, kg
- Tare Range:
- 100% subtractive
- Capabilities:
- Drives up to four loadcells; compatible with all Brecknell platforms and any system with up to four 350 ohm loadcells 4.4 VDC, up to 55 mA
- Operating Temperature:
- -5º C to 35º C / 23º F to 95º F
- Indicator Dimension:
- 5.25" L x 9.75" W x 6.5" H
- Certifications:
- CE
