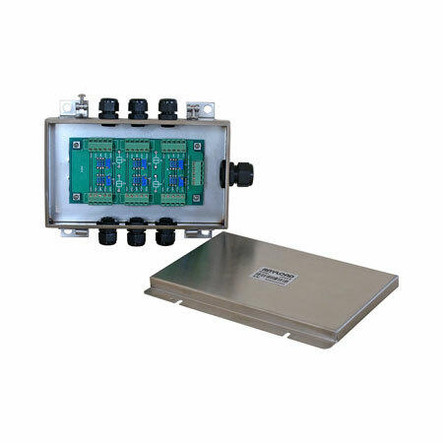

Anyload J06ES Excitation Trim Junction Box
The J06ES junction box accepts inputs from 2 to 6 load cells and sums the total signals into a single output. It is housed in a strong aluminum enclosure comes with the patented never-lost and integrated screw design.
Features
- Number of cells: 2-6 single cells
- Equipped with independent potentiometers
- Captive stainless steel screws (attached to the cover)
- IP Rating IP65
- Stainless steel construction
Documentation
1 year manufacturer's limited warranty
- Manufacturer:
- Anyload
- Model:
- J06ES
- Length:
- 7.90"
- Height:
- 1.70"
- Width:
- 5.90"
- Construction:
- Stainless Steel
- Number of Cells:
- 2-6 single cells
- IP Rating:
- IP65
- Input Cable Fittings:
- PG9: 4mm-8mm diameter cable
- Output Cable Fittingss:
- PG13: 6mm-12mm diameter cable
- Trimming:
- Signal Trim
- Trimming Range:
- 350Ω - 2.3% of output, 700Ω - 1.3% of output, 1000Ω - 1.0% of output
